Name: Weidmüller Socket housing cable BV/SV Total number of pins 5 Contact spacing: 7.62 mm 1157250000 25 pc(s)
Brand: Weidmüller
SKU: 307938

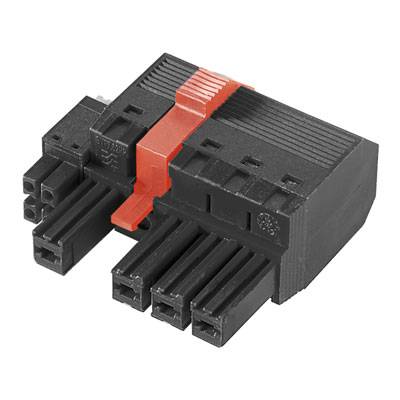

A black plastic connector with two rows of square pins and a red locking mechanism, typically used for electronic connections.

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

Series

BV/SV

7.62 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCB connector

Content: 25 pc(s)
No. of rows: 1
Total number of pins: 5

Our service for you

Technical specifications

Product type: Socket housing cable

Connector type: Socket, straight

No. of rows: 1

Connector system: wire-to-board

Series: BV/SV

CS: 7.62 mm

Pins per row: 5

Total number of pins: 5

Width: 54.60 mm

Nominal current: 33 A

Nominal current - rounded value: 33 A

Content: 25 pc(s)

AWG max.: 8

AWG (min.): 24

Stripping length (max.): 12.00 mm

Dim: (L x W x H) 24.30 x 54.60 x 44.70 mm

Connection: Spring-loaded terminal
Plug

Case material: PA GF

Manufacturer part #: 1157250000

Industrial packaging: Yes

Contact material: Cu-alloy, tin plated

Connector contact surface: Tin plated

Nominal voltage: 600 V

Height: 44.70 mm

Length: 24.30 mm

max. cross section: 10.00 mm²

Min. cross section: 0.50 mm²

RoHS-compliant: Yes

Connector orientation: Perpendicular (to the PCB)

Type: BVF 7.62HP/05/180MF4 BCF/08R SN BK BX

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Connector type

Width

Series

Total number of pins

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928280000 100 pc(s)

Item no:375495

Unavailable

Conrad Electronic

35 A

Socket, horizontal mount

28.00 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928500000 100 pc(s)

Item no:375519

Unavailable

Conrad Electronic

35 A

Socket, horizontal mount

30.48 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928610000 100 pc(s)

Item no:375525

Unavailable

Conrad Electronic

42 A

Socket, vertical vertical

31.50 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928730000 100 pc(s)

Item no:375532

Unavailable

Conrad Electronic

42 A

Socket, vertical vertical

31.50 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928840000 100 pc(s)

Item no:375539

Unavailable

Conrad Electronic

35 A

Socket, vertical vertical

31.50 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1929300000 100 pc(s)

Item no:375546

Unavailable

Conrad Electronic

35 A

Socket, horizontal mount

28.00 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1929410000 100 pc(s)

Item no:375553

Unavailable

Conrad Electronic

35 A

Socket, horizontal mount

30.48 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1929520000 100 pc(s)

Item no:375561

Unavailable

Conrad Electronic

35 A

Socket, horizontal mount

30.48 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 3 Contact spacing: 7.62 mm 1928510000 100 pc(s)

Item no:375520

Unavailable

Conrad Electronic

35 A

Socket, horizontal mount

38.10 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 3 Contact spacing: 7.62 mm 1928620000 100 pc(s)

Item no:375526

Unavailable

Conrad Electronic

42 A

Socket, vertical vertical

31.50 mm

BV/SV

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 307938 Weidmüller Socket housing cable BV/SV Total number of pins 5 Contact spacing: 7.62 mm 1157250000 25 pc(s)

User & Safety Instructions

User & Safety Instructions 307938 Weidmüller Socket housing cable BV/SV Total number of pins 5 Contact spacing: 7.62 mm 1157250000 25 pc(s)

Description

PCB connector. Jack plug, 7.62 mm, number of poles: 5, 180°, push-in spring connection, clamping range, max. width: 10 mm², Box. Combined 180°; socket plug with energy and signal contacts inPUSH IN connection technology including self verrastender center flange locking with optional plug-in shield connection in grid 7.62. Allows the simultaneous plug from power, signal and (optional) shield connection. Ideal for the connection of servo and asynchronous drives. Meets the requirements IEC 61800-5-1 and for the energy contacts of the UL 1059 ClassC 600 V. The self-locking center flange with automatic locking reduces the space required compared to conventional solutions with a raster width. The plug-in shield connection contacted over a large area on the device housing and does not need to be extra screwed. On request optional: without shield connection, without flange mounting or center flange with additional screw mounting. 0.2 - 6.0 mm² (IEC) / 28 - 12 AWG (UL), 1000 V (IEC) / 600 V (UL), 38 A (IEC) / 35 A (UL).

This text is machine translated.

Description

What kind of Pin Headers, Receptacles systems are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

Weidmüller PZ 6/5 9011460000 Crimper Ferrules 0.25 up to 6 mm²

Conrad Electronic

€ 259.00^*
