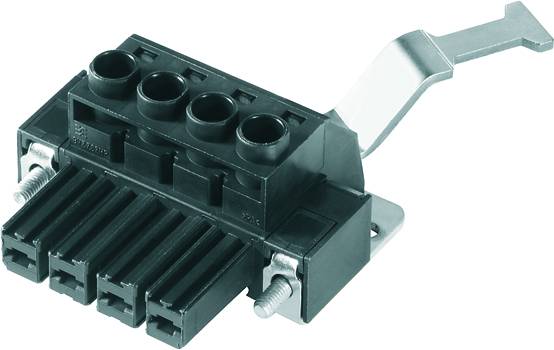

Weidmüller Socket housing cable BV/SV Total number of pins 5 Contact spacing: 7.62 mm 1933450000 25 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
BV/SV
CS
7.62 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 25 pc(s)
- No. of rows: 1
- Total number of pins: 5
Our service for you
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
BV/SV
- Features
+ strain relief
+ screw lock
- CS
7.62 mm
- Pins per row
5
- Total number of pins
5
- Width
155 mm
- Nominal current
40.50 A
- Nominal current - rounded value
40.5 A
- Content
25 pc(s)
- AWG max.
8
- AWG (min.)
24
- Stripping length (max.)
12.00 mm
- Dim
(L x W x H) 75 x 155 x 260 mm
- Connection
Screw terminal
Plug
- Case material
PA GF
- Manufacturer part #
1933450000
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Connector contact surface
Tin plated
- Nominal voltage
600 V
- Height
260 mm
- Length
75 mm
- max. cross section
6.00 mm²
- Min. cross section
0.50 mm²
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
BVZ 7.62HP/05/180SH210 SN BK BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 375893 Weidmüller Socket housing cable BV/SV Total number of pins 5 Contact spacing: 7.62 mm 1933450000 25 pc(s)
User & Safety Instructions
User & Safety Instructions 375893 Weidmüller Socket housing cable BV/SV Total number of pins 5 Contact spacing: 7.62 mm 1933450000 25 pc(s)
Description
PCB connector. Jack plug, 7.62 mm, number of poles: 5, 180°, receptacle, max.: 6 mm², Box. High Performance socket strip with the tested, 100% maintenance-free Weidmuller-Stahlzugbugel. Polverlustfrei can be stacked end-to-end or with patented multi-function flange for secure, fast and tool-free locking. The highest operating and reliability through 100% faulty plug safe plug face, unique Kodiervielfalt, incorrect wiring protection, 4-point contact. Can be labelled. 0.20 - 6 mm² (IEC) / 22 - 10 AWG (UL), 800 V (IEC) / 600 V (UL), 41 A (IEC) / 35 A (UL).
