Name: Weidmüller Socket housing cable Total number of pins 4 Contact spacing: 7.62 mm 1081660000 30 pc(s)
Brand: Weidmüller
SKU: 286927

Black multi-port connector with a red locking clip in the centre, suitable for electronic connections.

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

7.62 mm

Total number of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCB connector

Content: 30 pc(s)
No. of rows: 1
Total number of pins: 4

Our service for you

Technical specifications

Power contacts: 4
Signal contacts: 4

Product type: Socket housing cable

Connector type: Socket, straight

No. of rows: 1

Connector system: wire-to-board

Features: encodable
+ push-in spring bracket

CS: 7.62 mm

Pins per row: 4

Total number of pins: 4

Width: 46.98 mm

Nominal current: 35 A

Nominal current - rounded value: 35 A

Content: 30 pc(s)

AWG max.: 8

AWG (min.): 24

Stripping length (max.): 12.00 mm

Dim: (L x W x H) 24.30 x 46.98 x 44.70 mm

Connection: Spring-loaded terminal

Manufacturer part #: 1081660000

Industrial packaging: Yes

Contact material: Cu-alloy, tin plated

Connector contact surface: Tin plated

Nominal voltage: 600 V

Height: 44.70 mm

Length: 24.30 mm

max. cross section: 10 mm²

Min. cross section: 0.5 mm²

RoHS-compliant: Yes

Connector orientation: Perpendicular (to the PCB)

Type: BVF 7.62HP/04/180MSF4 BCF/04R SN BK BX

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Connector type

Width

No. of rows

Total number of pins

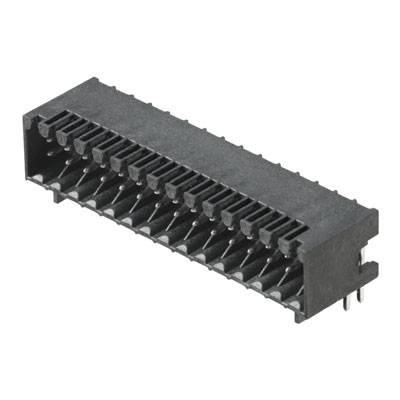

PCB plug-in connector, male header, closed side, Reflow solder connection, 3,50 mm, No. of poles: 30, 90°, Solder pin length: 1,5 mm, tinned, Black, Tape

Item no:280007

Unavailable

Conrad Electronic

10 A

Plug, horizontal mount

330 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCB plug-in connector, male header, open side, Reflow solder connection, 3,50 mm, No. of poles: 28, 90°, Solder pin length: 3,2 mm, tinned, Black, Box

Item no:281165

Unavailable

Conrad Electronic

7 A

Plug, horizontal mount

35.00 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCB plug-in connector, male header, open side, Reflow solder connection, 3,50 mm, No. of poles: 32, 90°, Solder pin length: 3,2 mm, tinned, Black, Box

Item no:281166

Unavailable

Conrad Electronic

7 A

Plug, horizontal mount

35.10 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCB plug-in connector, male header, open side, Reflow solder connection, 3,50 mm, No. of poles: 36, 90°, Solder pin length: 3,2 mm, tinned, Black, Box

Item no:281167

Unavailable

Conrad Electronic

7 A

Plug, horizontal mount

38.60 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

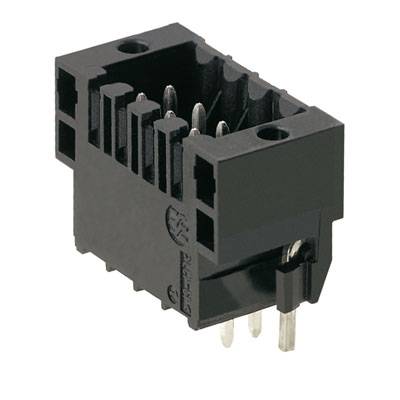

Weidmüller Pin housing PCB Total number of pins 10 Contact spacing: 3.50 mm 1017160000 72 pc(s)

Item no:280746

Unavailable

Conrad Electronic

10 A

Plug, vertical mount

50 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Pin housing PCB Total number of pins 10 Contact spacing: 3.50 mm 1044980000 175 pc(s)

Item no:282427

Unavailable

Conrad Electronic

10 A

Plug, vertical mount

330 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

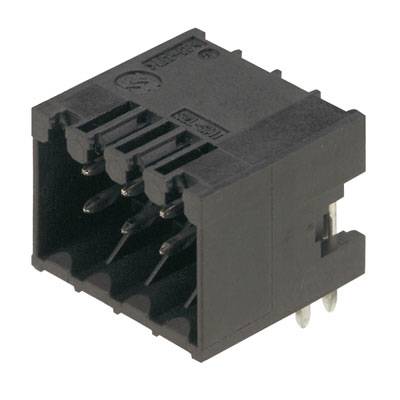

Weidmüller Pin housing PCB Total number of pins 10 Contact spacing: 3.50 mm 1057060000 235 pc(s)

Item no:282849

Unavailable

Conrad Electronic

10 A

Plug, horizontal mount

335 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

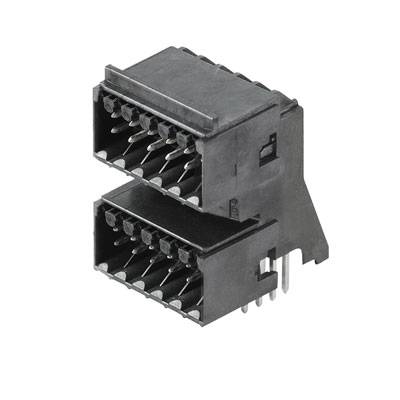

Weidmüller Pin housing PCB Total number of pins 10 Contact spacing: 3.50 mm 1065330000 20 pc(s)

Item no:283285

Unavailable

Conrad Electronic

7 A

Plug, horizontal mount

35.00 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Pin housing PCB Total number of pins 12 Contact spacing: 3.50 mm 1017170000 66 pc(s)

Item no:280748

Unavailable

Conrad Electronic

10 A

Plug, vertical mount

60 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

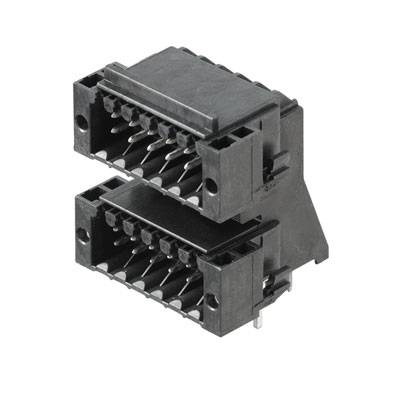

Weidmüller Pin housing PCB Total number of pins 12 Contact spacing: 3.50 mm 1045390000 20 pc(s)

Item no:282464

Unavailable

Conrad Electronic

7 A

Plug, horizontal mount

35.00 mm

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 286927 Weidmüller Socket housing cable Total number of pins 4 Contact spacing: 7.62 mm 1081660000 30 pc(s)

User & Safety Instructions

User & Safety Instructions 286927 Weidmüller Socket housing cable Total number of pins 4 Contact spacing: 7.62 mm 1081660000 30 pc(s)

Description

PCB connector. Jack plug, 7.62 mm, number of poles: 4, 180°, push-in spring connection, clamping range, max. width: 10 mm², Box. Combined 180°; socket plug with energy and signal contacts inPUSH IN connection technology including self verrastender center flange locking with optional plug-in shield connection in grid 7.62. Allows the simultaneous plug from power, signal and (optional) shield connection. Ideal for the connection of servo and asynchronous drives. Meets the requirements IEC 61800-5-1 and for the energy contacts of the UL 1059 ClassC 600 V. The self-locking center flange with automatic locking reduces the space required compared to conventional solutions with a raster width. The plug-in shield connection contacted over a large area on the device housing and does not need to be extra screwed. On request optional: without shield connection, without flange mounting or center flange with additional screw mounting. 0.2 - 6.0 mm² (IEC) / 28 - 12 AWG (UL), 1000 V (IEC) / 600 V (UL), 38 A (IEC) / 35 A (UL).

This text is machine translated.

Description

What kind of Pin Headers, Receptacles systems are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

Weidmüller PZ 6/5 9011460000 Crimper Ferrules 0.25 up to 6 mm²

Conrad Electronic

€ 259.00^*
