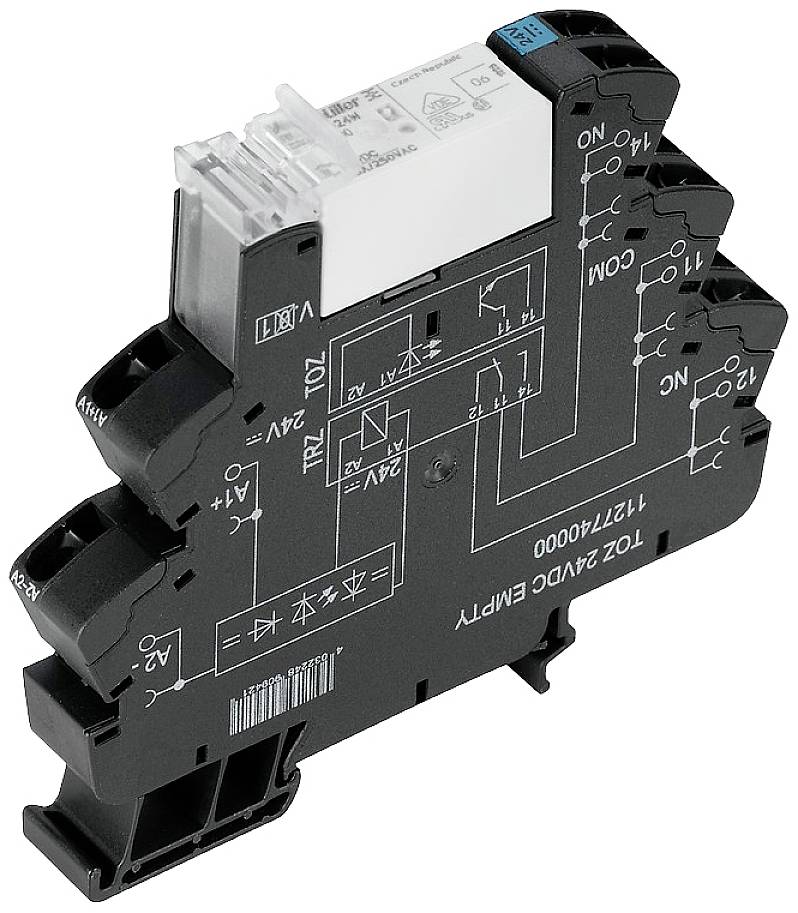

Weidmüller TRZ 24VDC 1NO HC Relay component Nominal voltage: 24 V DC Switching current (max.): 16 A 1 maker 10 pc(s)
Product type
Relay component
Contact type
1 maker
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
250 V DC
Switching current (max.)
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Status indicator: Green LED
- Switch-on delay: ≤ 7 ms
- Switch-off delay: ≤ 16 ms
- min Switching capacity 1 W
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Over voltage category III
- Pollution level: 2
- Voltage strength input - output: 1.2 kVeff / 5 s.
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.14 mm²
- Clamping range, max. 2.5 mm²
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 14
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 2.5 mm²
- Conductor cross-section, fine strand, min. 0.14 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.14 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 1.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.14 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 1.5 mm²
- Blade size 0.6 x 3.5 mm
- Product type
Relay component
- Type
TRZ 24VDC 1NO HC
- Connection
Pull spring
- Factory colour
Black
- Max. pick-up voltage
18 V DC
- Response time
7 ms
- Fall time
16 ms
- Contact type
1 maker
- Contact material
AgSnO
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
250 V DC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
384 W
- Durability
5 x 10 6 circuits
- Creepage distance (coil/clips)
5.5 mm
IP20
- Max. temperature
60 °C
- Min. temperature
-40 °C
- Length
87.8 mm
- Width
12.8 mm
- Height
90.5 mm
- Dim
(L x W x H) 87.8 x 12.8 x 90.5 mm
- Content
10 pc(s)
- Weight
55 g
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1948677 Weidmüller TRZ 24VDC 1NO HC Relay component Nominal voltage: 24 V DC Switching current (max.): 16 A 1 maker 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1948677 Weidmüller TRZ 24VDC 1NO HC Relay component Nominal voltage: 24 V DC Switching current (max.): 16 A 1 maker 10 pc(s)
Description
TRZ relay coupler 1S 24VDC 1NO HC
