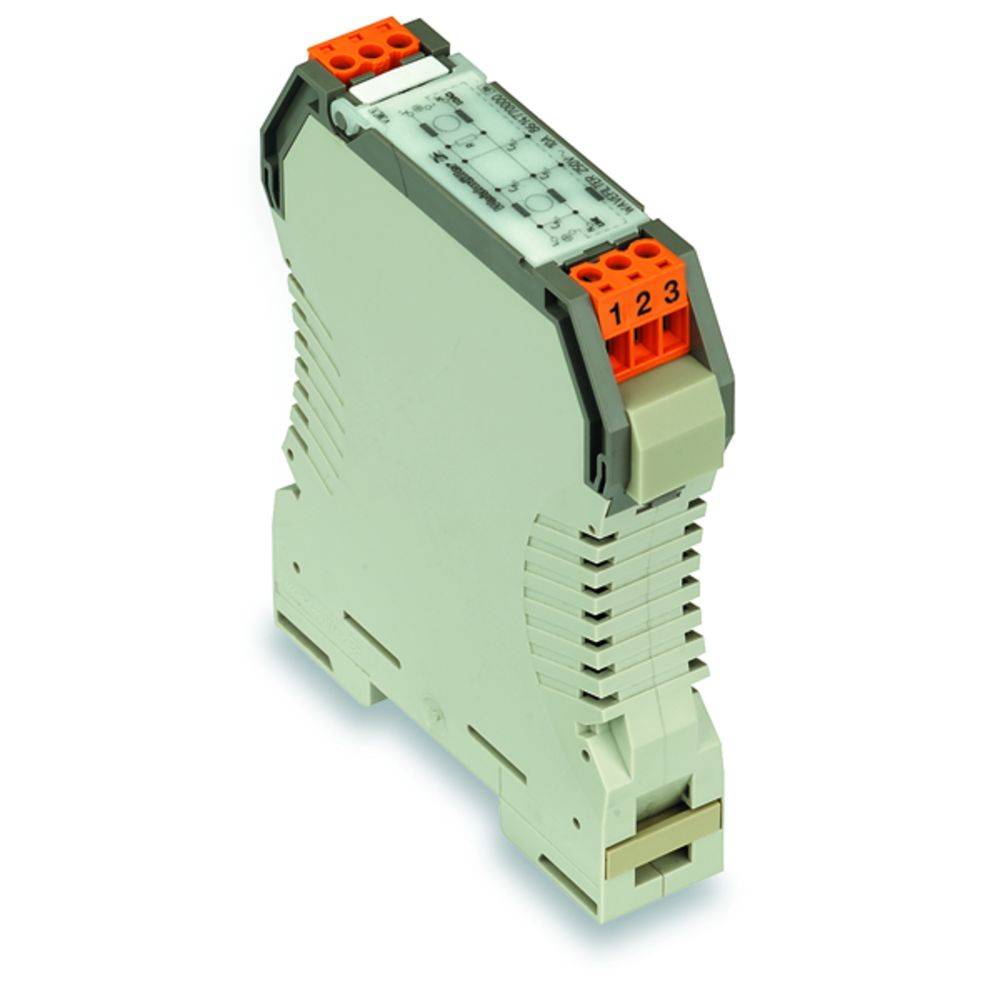

Weidmüller WAVEFILTER 10A 8614770000 1 pc(s)
Type
WAVEFILTER 10A
Dim
(L x W x H) 26 x 22.5 x 73.4 mm
Content
1 pc(s)
Width
22.5 mm
Height
73.4 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Overvoltage protection
- Wave filter 10 A
Technical specifications
- Type
WAVEFILTER 10A
- Dim
(L x W x H) 26 x 22.5 x 73.4 mm
- Content
1 pc(s)
- Width
22.5 mm
- Height
73.4 mm
- Length
26 mm
- RoHS-compliant
Yes
- Supply voltage (num.)
250 V
- Operating voltage U(B)
5V. 12V. 24V. 48V. 60V. 120V bis zu 250V
- Depth
73.4 mm
- Type
Wave filter 10 A
- Weight
142.12 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258198 Weidmüller WAVEFILTER 10A 8614770000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258198 Weidmüller WAVEFILTER 10A 8614770000 1 pc(s)
Description
Surge protection. Wave series, 250 V. simple radio interference suppression in the cabinet by wave filter. With the number of WAVE filter eliminates the time-consuming screwing of mains filters. The filters are on TS 35 top-hat and to the ends of the suppression device. The two-stage WAVE FILTER, in the Width 22.5 mm, in Design 1A, 3A, 6A and 10A offers a high damping in all voltage levels of 5 V, 12 V, 24 V, 48 V, 60 V, 120 V up to 250 V.
