Wera 05020170001 Joker VDE 4 Set 1 Self-adjusting open ring spanner 4-piece Spanner size (metric) 7 - 19 mm Spanner size
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 176.46 / piece)
€
Highlights & Details
Wrench
- Integrated lever mechanism
- 2-component plastic insulation
Technical specifications
- Spanner size
7 mm
8 mm
9 mm
10 mm
11 mm
12 mm
13 mm
14 mm
15 mm
16 mm
Show more
- Size
1/4"
3/4"
- Product type
Self-adjusting open ring spanner
Variants(All information is without VAT, plus shipping costs)
Spanner size
Wera 05020170001 Joker VDE 4 Set 1 Self-adjusting open ring spanner 4-piece Spanner size (metric) 7 - 19 mm Spanner size (inches) 1/4" - 3/4"
This article
7 mm
Minimum order quantity: 1
Multiple: 1
€ 176.46*

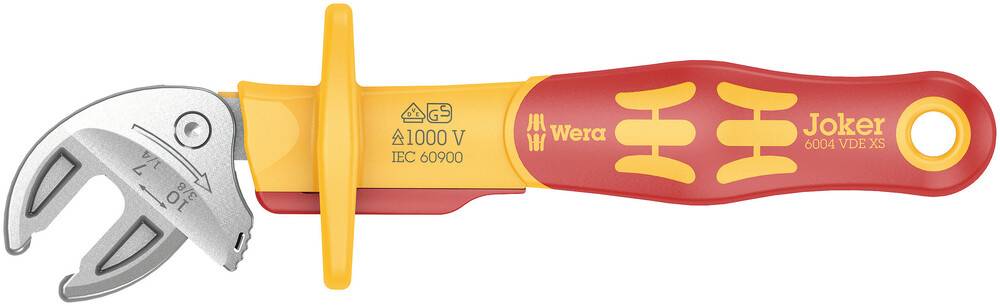

Wera 05020150001 Joker VDE XS Self-adjusting open ring spanner 1-piece Spanner size (metric) 7 - 10 mm Spanner size (inches) 1/4" - 3/8"
7 mm
Minimum order quantity: 1
Multiple: 1
€ 35.29*
Wera 05020151001 Joker VDE S Self-adjusting open ring spanner 1-piece Spanner size (metric) 10 - 13 mm Spanner size (inches) 1/2" - 7/16"
10 mm
Minimum order quantity: 1
Multiple: 1
€ 39.49*

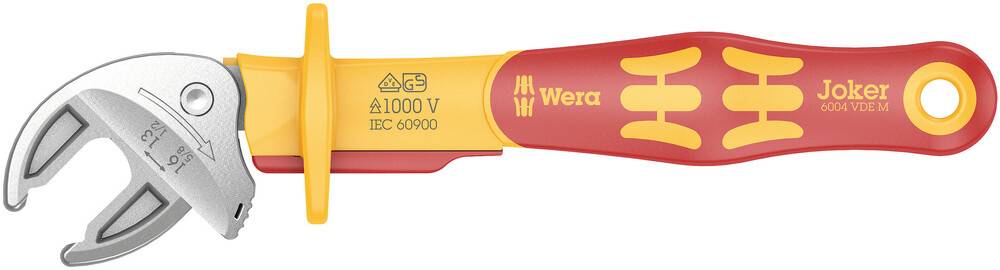

Wera 05020152001 Joker VDE M Self-adjusting open ring spanner 1-piece Spanner size (metric) 13 - 16 mm Spanner size (inches) 1/2" - 5/8"
13 mm
Minimum order quantity: 1
Multiple: 1
€ 43.69*
Wera 05020153001 Joker VDE L Self-adjusting open ring spanner 1-piece Spanner size (metric) 16 - 19 mm Spanner size (inches) 3/4" - 5/8"
16 mm
Minimum order quantity: 1
Multiple: 1
€ 55.45*
Documents & Downloads
Datasheet
Datasheet 2626300 Wera 05020170001 Joker VDE 4 Set 1 Self-adjusting open ring spanner 4-piece Spanner size (metric) 7 - 19 mm Spanner size
User & Safety Instructions
User & Safety Instructions 2626300 Wera 05020170001 Joker VDE 4 Set 1 Self-adjusting open ring spanner 4-piece Spanner size (metric) 7 - 19 mm Spanner size
Description
VDE-insulated self-adjusting open-end spanner set, 4 piece In a robust textile box
Tested tool according to IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000 V. The adjustable VDE spanner fits continuously and automatically all hexagon sizes in the specified dimensions - metric and imperial. The integrated lever mechanism securely engages the hexagon screw or nut between the jaws, WAS significantly reduces the risk of slipping and damage. The ratchet function provides for fast and continuous screwing without offset. By using the corner width prisms, a return angle of traverse of only 30° is possible. The single-arm construction in conjunction with the ratchet function and corner width prism allows work even in confined spaces. The adjustable Joker 6004 VDE has a haptically pleasant handle thanks to the 2-component plastic insulation. Safety is enhanced by slip-proof protection at the front end of the grip. Additional protection by the sliding function for contactless and safe opening of the non-insulated jaws.
This text is machine translated.
Tested tool according to IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000 V. The adjustable VDE spanner fits continuously and automatically all hexagon sizes in the specified dimensions - metric and imperial. The integrated lever mechanism securely engages the hexagon screw or nut between the jaws, WAS significantly reduces the risk of slipping and damage. The ratchet function provides for fast and continuous screwing without offset. By using the corner width prisms, a return angle of traverse of only 30° is possible. The single-arm construction in conjunction with the ratchet function and corner width prism allows work even in confined spaces. The adjustable Joker 6004 VDE has a haptically pleasant handle thanks to the 2-component plastic insulation. Safety is enhanced by slip-proof protection at the front end of the grip. Additional protection by the sliding function for contactless and safe opening of the non-insulated jaws.
This text is machine translated.
Features
- The compact textile box with four adjustable Joker 6004 VDE covers all metric and imperial dimensions in the range of application from 7 to 19 mm or ¼" to ¾"
- Piece-tested tool with insulated grips for safe working up to 1,000 volts with slip protection and sliding function for contactless and safe opening of the non-insulated jaws
- Automatic and continuous gripping of hexagonal screws and nuts
- Lever mechanism during grip prevents slipping and damage
- With mechanical ratchet function for quick and continuous screwing without setting off the key
Scope of delivery
- 1 x 6004 Joker VDE 4 Set 1 VDE-insulated self-adjusting open-end wrench set, 4-piece
- 1x 6004 Joker VDE XS VDE-insulated, self-adjusting open ring spanner 7-10x1/4"-3/8" x119
- 1 x 6004 Joker VDE S VDE-insulated, self-adjusting open ring spanner: 10-13x7/16"-1/2" x155
- 1x 6004 Joker VDE M VDE-insulated, self-adjusting open ring spanner 13-16x1/2"-5/8 "x190
- 1x 6004 Joker VDE L VDE-insulated self-adjusting open ring spanner: 16-19X5/8"-3/4"x226
- 1x adhesive strips 120:50x120
