Blue wire stripping pliers with a red detail, marked with 'WEICON No. 5', designed for stripping electrical cables.

Blue wire stripping pliers with a red detail, marked with 'WEICON No. 5', designed for stripping electrical cables.

'A hand holds a blue wire stripping pliers, which is stripping the insulation from a cable in front of a junction box with multiple coloured wires.'

'A hand is holding a blue wire stripping pliers and removing the insulation from a black cable protruding from a wall socket.'

A hand is holding a wire stripping tool and removing the insulation from a black wire. Several wires are protruding from a socket.

A hand is using a blue wire stripping tool to remove the insulation from a green and yellow wire.

Three cable types in cross-section: single-core wire in purple sheath, solid wire in black sheath, multi-core cable in red sheath.

Various colourful cable ends with exposed copper wires, vertically arranged against a white background.

1/7

WEICON TOOLS

Datasheet (PDF)

421 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 20.16 / piece)

€

Report legal concerns

Highlights & Details

Super 5 wire stripper

Also with voltage protection up to 1000 V

Technical specifications

Length stop from 8 to 12 mm
Wire cutter (up to 2 mm Ø).

Suitable for: PVC-coated cables

Working area (cross section): 0.2 up to 6 mm²

Working area cross section (min.): 0.2 mm²

Operating range (cross section) (max.): 6 mm²

Operating range (AWG diameter): 10 up to 24

Operating range (AWG cross section) (min.): 24

Operating range (AWG cross section) (max.): 10 awg

Length stop range: 5 up to 12 mm

Length stop (min.): 5 mm

Length stop (max.): 12 mm

Length: 165 mm

Weight: 105 g

Suitable for: Conductors and wires

Type: Weicon Super 5

Product type: Wire stripping tool

Documents & Downloads

Datasheet

Datasheet 804037 WEICON TOOLS No.5 10006786 Wire stripping tool 0.2 up to 6 mm² 10 up to 24

User & Safety Instructions

User & Safety Instructions 804037 WEICON TOOLS No.5 10006786 Wire stripping tool 0.2 up to 6 mm² 10 up to 24

Information

Deutsch (Deutschland)

Information 804037 WEICON TOOLS No.5 10006786 Wire stripping tool 0.2 up to 6 mm² 10 up to 24

Description

Automatic wire stripper with adjustable stop. Strips all common flexible/solid wires extremely quickly and easily, even in difficult corners. Automatically adjusts to the wire section, strips perfectly without damaging.

Frequently Bought Together

(^*All information is plus legal VAT)

WEICON TOOLS No.5 10006786 Wire stripping tool 0.2 up to 6 mm² 10 up to 24

WEICON TOOLS No.5 10006786 Wire stripping tool 0.2 up to 6 mm² 10 up to 24

Conrad Electronic

TOOLCRAFT 2-i-1 818644 Crimper Insulated blade terminals, Cable lugs, Butt connectors 0.5 up to 10 mm²

TOOLCRAFT 2-i-1 818644 Crimper Insulated blade terminals, Cable lugs, Butt connectors 0.5 up to 10 mm²

Conrad Electronic

Knipex 13 86 200 13 86 200 Multifunction pliers 50 mm² (max) 0 (max) 15 mm (max)

Knipex 13 86 200 13 86 200 Multifunction pliers 50 mm² (max) 0 (max) 15 mm (max)

Conrad Electronic

Stahlwille 40080808 13 8 Crowfoot wrench Spanner size (metric) 8 mm

Stahlwille 40080808 13 8 Crowfoot wrench Spanner size (metric) 8 mm

Conrad Electronic

Total price:

€ 115.09€ 105.85^*

What kind of Cable Strippers are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

TOOLCRAFT 2-i-1 818644 Crimper Insulated blade terminals, Cable lugs, Butt connectors 0.5 up to 10 mm²

TOOLCRAFT 2-i-1 818644 Crimper Insulated blade terminals, Cable lugs, Butt connectors 0.5 up to 10 mm²

Conrad Electronic

Knipex 13 86 200 13 86 200 Multifunction pliers 50 mm² (max) 0 (max) 15 mm (max)

Knipex 13 86 200 13 86 200 Multifunction pliers 50 mm² (max) 0 (max) 15 mm (max)

Conrad Electronic

Knipex 13 81 200 Multifunction pliers 50 mm² (max) 0 (max) 15 mm (max)

Knipex 13 81 200 Multifunction pliers 50 mm² (max) 0 (max) 15 mm (max)

Conrad Electronic

More interesting products

(^*All information is plus legal VAT)

Wiha 42062 Cable stripper tool 0.03 up to 16 mm² 5 up to 32

Wiha 42062 Cable stripper tool 0.03 up to 16 mm² 5 up to 32

Conrad Electronic

Weidmüller STRIPPER 6 9046240000 Automatic stripper 0.08 up to 6 mm² 10 up to 28

Weidmüller STRIPPER 6 9046240000 Automatic stripper 0.08 up to 6 mm² 10 up to 28

Conrad Electronic

Phoenix Contact WIREFOX 16 1212155 Automatic stripper 4 up to 16 mm² 2.4 up to 4.6 mm

Phoenix Contact WIREFOX 16 1212155 Automatic stripper 4 up to 16 mm² 2.4 up to 4.6 mm

Conrad Electronic

WAGO Quickstrip Vario 206-1125 Cable stripper 0.03 up to 16 mm²

WAGO Quickstrip Vario 206-1125 Cable stripper 0.03 up to 16 mm²

Conrad Electronic

Klauke K433 K433 Cable stripping pliers 0.03 up to 16 mm² 5 up to 32 awg

Klauke K433 K433 Cable stripping pliers 0.03 up to 16 mm² 5 up to 32 awg

Conrad Electronic

Phoenix Contact WIREFOX 10 1212150 Automatic stripper 0.02 up to 10 mm² 0.1 up to 3.7 mm

Phoenix Contact WIREFOX 10 1212150 Automatic stripper 0.02 up to 10 mm² 0.1 up to 3.7 mm

Conrad Electronic

Jokari 10270 No. 27 Secura Cable stripping knife Suitable for Round cable 8 up to 28 mm

Jokari 10270 No. 27 Secura Cable stripping knife Suitable for Round cable 8 up to 28 mm

Conrad Electronic

TOOLCRAFT TO-7752540 Cable stripper Incl. cable cutter, Incl. cable strippers

TOOLCRAFT TO-7752540 Cable stripper Incl. cable cutter, Incl. cable strippers

Conrad Electronic

Weidmüller Stripax 9005000000 Cable sheathing stripper 0.08 up to 10 mm² 8 up to 28 awg

Weidmüller Stripax 9005000000 Cable sheathing stripper 0.08 up to 10 mm² 8 up to 28 awg

Conrad Electronic

Weidmüller Mini Duro Stripax 9001280000 Cable stripping pliers 0.08 up to 1 mm² 18 up to 28 0.3 up to 1.3 mm

Weidmüller Mini Duro Stripax 9001280000 Cable stripping pliers 0.08 up to 1 mm² 18 up to 28 0.3 up to 1.3 mm

Conrad Electronic

Wire stripper Suitable for PVC-coated cables 0.2 up to 6 mm² 10 up to 24 2.5 mm (max) Jokari Super 4 Plus 20050 Suitable

Wire stripper Suitable for PVC-coated cables 0.2 up to 6 mm² 10 up to 24 2.5 mm (max) Jokari Super 4 Plus 20050 Suitable

Conrad Electronic

Knipex 1262 12 62 180 Cable jacket stripping pliers 0.2 up to 6 mm² 10 up to 24

Knipex 1262 12 62 180 Cable jacket stripping pliers 0.2 up to 6 mm² 10 up to 24

Conrad Electronic

Wiha 44240 WIHA - Abisolier-/Abmantelwerkzeug44240Z 72 0 06 Typ 001 SB Cable jacket stripping knife 4 up to 28 mm

Wiha 44240 WIHA - Abisolier-/Abmantelwerkzeug44240Z 72 0 06 Typ 001 SB Cable jacket stripping knife 4 up to 28 mm

Conrad Electronic

WEICON TOOLS 10012851 NO. 4-28 G Cable stripper Suitable for Round cable 4 up to 28 mm

WEICON TOOLS 10012851 NO. 4-28 G Cable stripper Suitable for Round cable 4 up to 28 mm

Conrad Electronic

TOOLCRAFT TO-10187133 VDE Multifunction pliers 1.5 up to 5.26 mm²

TOOLCRAFT TO-10187133 VDE Multifunction pliers 1.5 up to 5.26 mm²

Conrad Electronic

TOOLCRAFT TO-10195302 Electrical & precision engineering Wire stripper 0.05 up to 8 mm² 8 up to 30 awg

TOOLCRAFT TO-10195302 Electrical & precision engineering Wire stripper 0.05 up to 8 mm² 8 up to 30 awg

Conrad Electronic

TOOLCRAFT TO-7331148 Stripper incl. cable stripper 4.1 mm (min) Suitable for brand (pliers) TOOLCRAFT

Conrad Electronic

TOOLCRAFT 1550665 Multifunction pliers

TOOLCRAFT 1550665 Multifunction pliers

Conrad Electronic

TOOLCRAFT TO-4861971 Multifunction pliers 0.75 up to 6 mm

TOOLCRAFT TO-4861971 Multifunction pliers 0.75 up to 6 mm

Conrad Electronic

TOOLCRAFT TO-4861944 Cable stripper 0.15 up to 6 mm² 10 up to 26 awg

TOOLCRAFT TO-4861944 Cable stripper 0.15 up to 6 mm² 10 up to 26 awg

Conrad Electronic

TOOLCRAFT TO-7836567 VDE cable stripper 10 mm² (max)

TOOLCRAFT TO-7836567 VDE cable stripper 10 mm² (max)

Conrad Electronic

TOOLCRAFT TO-5017527 Cable stripper 0.5 up to 6 mm² 0.5 up to 6 mm

TOOLCRAFT TO-5017527 Cable stripper 0.5 up to 6 mm² 0.5 up to 6 mm

Conrad Electronic

TOOLCRAFT TO-9621810 Fibre optic tool Incl. cable cutter, incl. cable stripper 0 up to 25 mm

TOOLCRAFT TO-9621810 Fibre optic tool Incl. cable cutter, incl. cable stripper 0 up to 25 mm

Conrad Electronic

Knipex 13 96 200 Multifunction pliers 50 mm² (max) 0 awg (max) 15 mm (max)

Knipex 13 96 200 Multifunction pliers 50 mm² (max) 0 awg (max) 15 mm (max)

Conrad Electronic

Knipex 12 40 200 Automatic stripper 0.03 up to 10 mm² 8 up to 32

Knipex 12 40 200 Automatic stripper 0.03 up to 10 mm² 8 up to 32

Conrad Electronic

C.K Ecotronic T3893 ESD Cable stripper 0.2 up to 0.8 mm

C.K Ecotronic T3893 ESD Cable stripper 0.2 up to 0.8 mm

Conrad Electronic

Knipex MultiStrip 10 12 42 195 Automatic stripper 0.03 up to 10 mm² 7 up to 32

Knipex MultiStrip 10 12 42 195 Automatic stripper 0.03 up to 10 mm² 7 up to 32

Conrad Electronic

Knipex 13 86 200 13 86 200 Multifunction pliers 50 mm² (max) 0 (max) 15 mm (max)

Knipex 13 86 200 13 86 200 Multifunction pliers 50 mm² (max) 0 (max) 15 mm (max)

Conrad Electronic

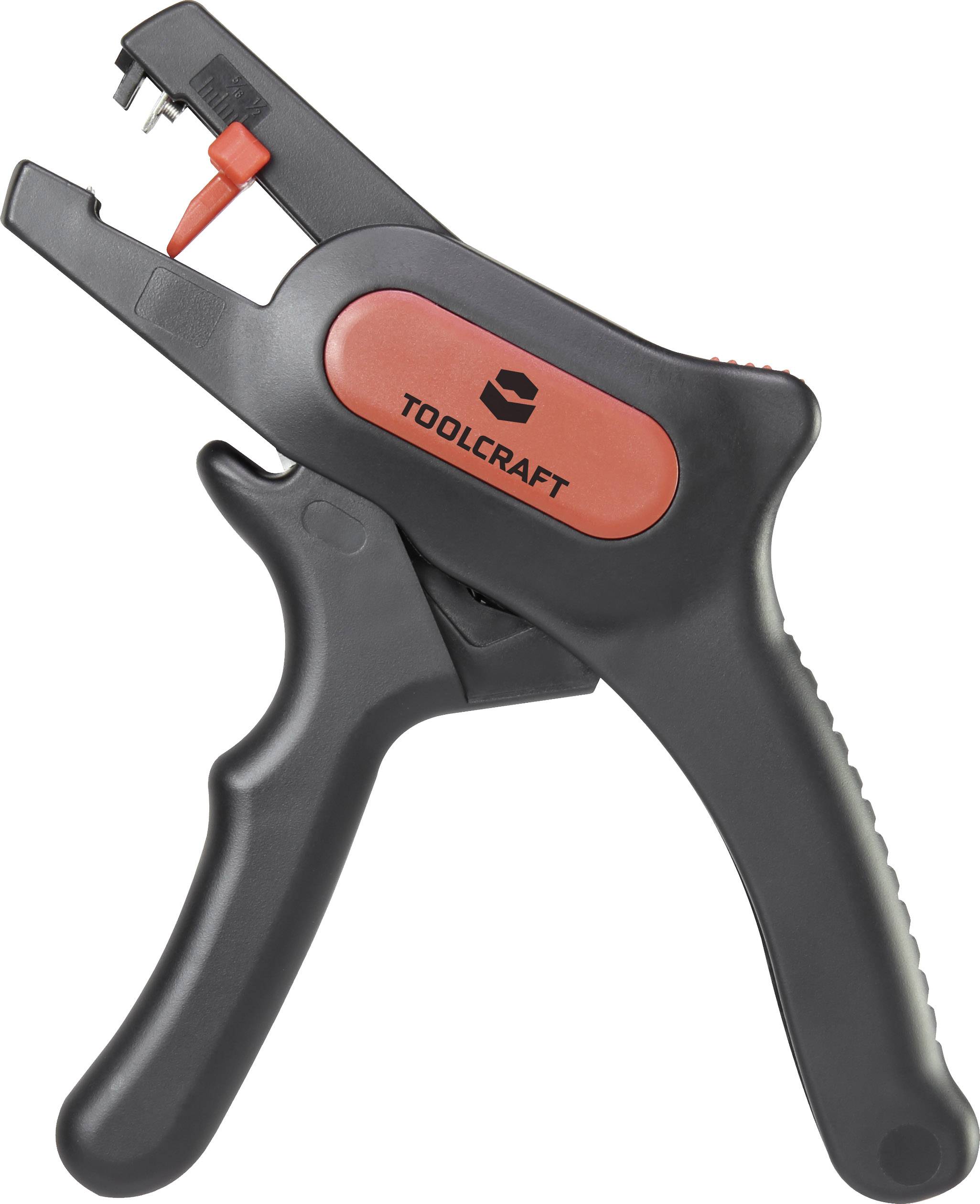

TOOLCRAFT 1553069 Automatic stripper 0.2 up to 6 mm² 24 up to 10 0.2 up to 6 mm
