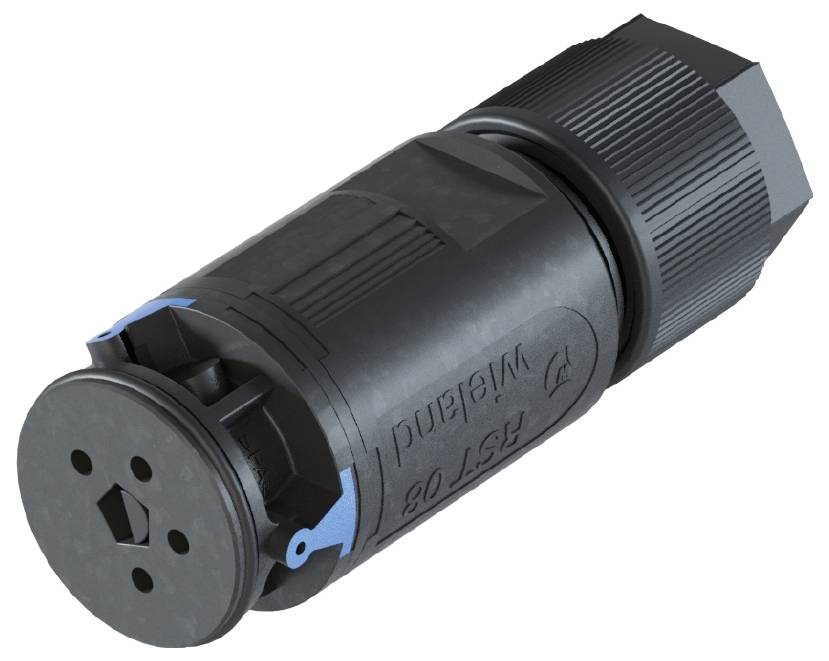

Wieland Electric 41.041.3043.9 Connector
EAN:
Part number:
Item no:
Number
Total (€ 8.99 / piece)
€ 8.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
8 A
- Cable Ø (max.)
10.6 mm
- Cable Ø up to
5 mm
- Cable Ø range
5 - 10.6 mm
- Number of pins
4
IP66
20 mm
Bus
TRUE
20 mm
Screw connection
Integrated in plug-in connector
8 A
250 V
TRUE
4
56 mm
Polyamide (PA)
5-10.6 mm
Silver-plated
3
TRUE
2.5 kV
0.55 mOhm
CuZn
IP66
1
Blue
0.22-1 mm²
0.2-1 mm²
100 °C
5012
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273378 Wieland Electric 41.041.3043.9 Connector
Description
RST® MICRO connector
straight
Number of pins: 4
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 8 A
Cable diameter 5 - 10.6 mm
Coding color / contact insert light blue
This text is machine translated.
straight
Number of pins: 4
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 8 A
Cable diameter 5 - 10.6 mm
Coding color / contact insert light blue
This text is machine translated.
