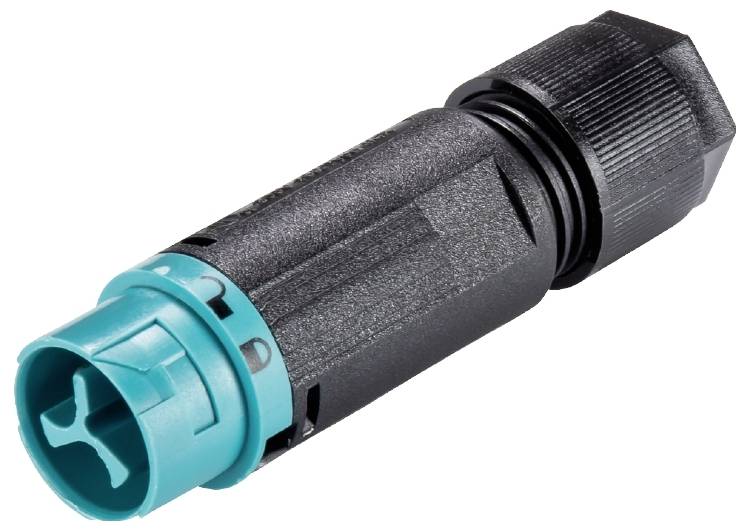

Wieland Electric 46.032.4951.6 Connector
EAN:
Part number:
Item no:
Number
Total (€ 9.49 / piece)
€ 9.49
incl. VAT
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 10 mm
- Number of pins
2
IP66
- Series
RST Mini
19.9 mm
Plug
TRUE
19.9 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
TRUE
2
64 mm
Polyamide (PA)
4-10 mm
Silver-plated
3
4 kV
0.75 mOhm
CuZn
IP66
1
1, 2
Blue
0.133 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
5018
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273548 Wieland Electric 46.032.4951.6 Connector
Description
RST® MINI connector
straight
For AS-i profile cable
Number of poles: 2
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 4 - 10 mm
AS-i profile cable
Coding color / contact insert, turquoise
This text is machine translated.
straight
For AS-i profile cable
Number of poles: 2
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 4 - 10 mm
AS-i profile cable
Coding color / contact insert, turquoise
This text is machine translated.
