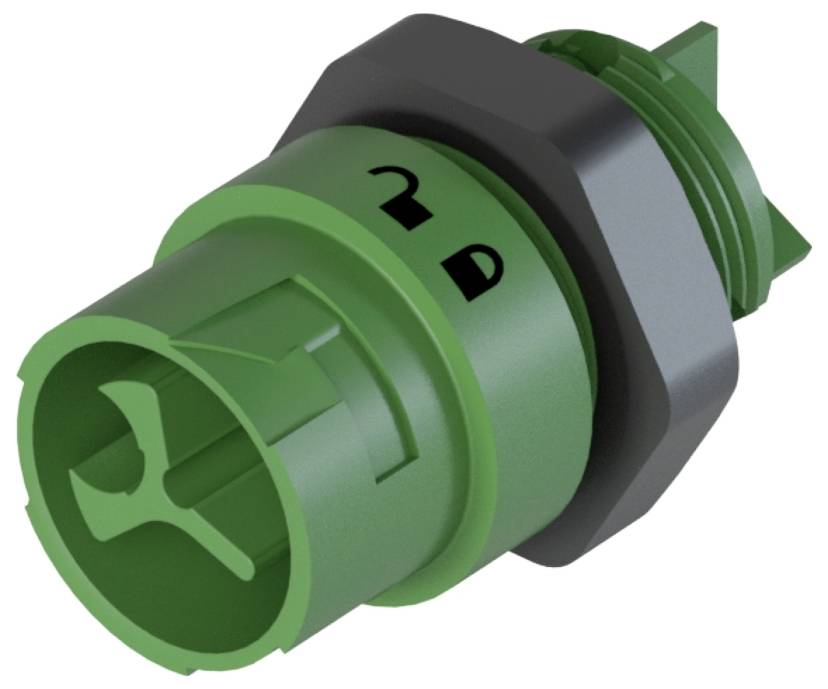

Wieland Electric 46.032.5056.7 Appliance connector
EAN:
Part number:
Item no:
Number
Total (€ 9.49 / piece)
€ 9.49
incl. VAT
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Number of pins
2
- Series
RST Mini
19.9 mm
Plug
TRUE
19.9 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
2
35.2 mm
Polyamide (PA)
Silver-plated
3
4 kV
0.75 mOhm
CuZn
M16
1
1, 2
Green
0.043 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
6002
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289109 Wieland Electric 46.032.5056.7 Appliance connector
Description
RST® MINI device connection
Standard
straight
M16
Number of poles: 2
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Coding color / contact insert leaf green
This text is machine translated.
Standard
straight
M16
Number of poles: 2
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Coding color / contact insert leaf green
This text is machine translated.
