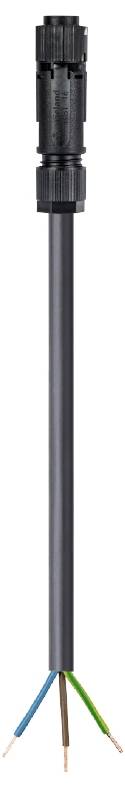

Wieland Electric 46.432.2003.1 Cable Black 2 m
EAN:
Part number:
Item no:
Number
Total (€ 16.99 / piece)
€ 16.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
2 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
8.15 mm
- Cable Ø up to
7.85 mm
- Cable Ø range
7.85 - 8.15 mm
- Number of pins
3
IP66
- Series
RST Mini
FALSE
1.5 mm²
H05VV-F
Black
Integrated in plug-in connector
16 A
250 V
2000 mm
3
Black
7.85-8.15 mm
Silver-plated
3
4 kV
23.55 mOhm
IP66
L, N, PE
Black
0.906 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273783 Wieland Electric 46.432.2003.1 Cable Black 2 m
Description
RST® MINI connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
