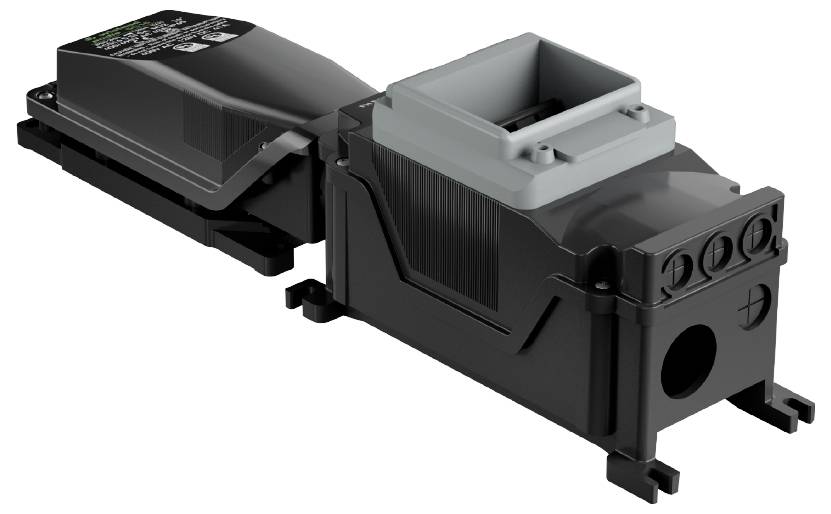

Wieland Electric 75.456.0955.1 Circuit breaker module Black
EAN:
Part number:
Item no:
Number
Total (€ 315.00 / piece)
€ 315.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Circuit breaker module
- Factory colour
Black
- Rated voltage
400 V
- Test current
32 A
- Number of pins
5
IP65
- Light bulb features
Lockable
100 mm
TRUE
126 mm
Black
32 A
400 V
5
438.8 mm
Polyamide (PA)
IP65
1-35 mm²
1-25 mm²
120 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274989 Wieland Electric 75.456.0955.1 Circuit breaker module Black
Description
Podis CON 5G16 security module; combines flat cable tap and distributed protection; internally a 4-pin FI/LS type A with the tripping characteristic C32 A / 30 mA is installed and wired; for M32 cable gland output
Plus optional holes for M20 cable gland and M12 connector plugs (cable glands can be ordered as accessories); lockable with padlock; color black
This text is machine translated.
Plus optional holes for M20 cable gland and M12 connector plugs (cable glands can be ordered as accessories); lockable with padlock; color black
This text is machine translated.
