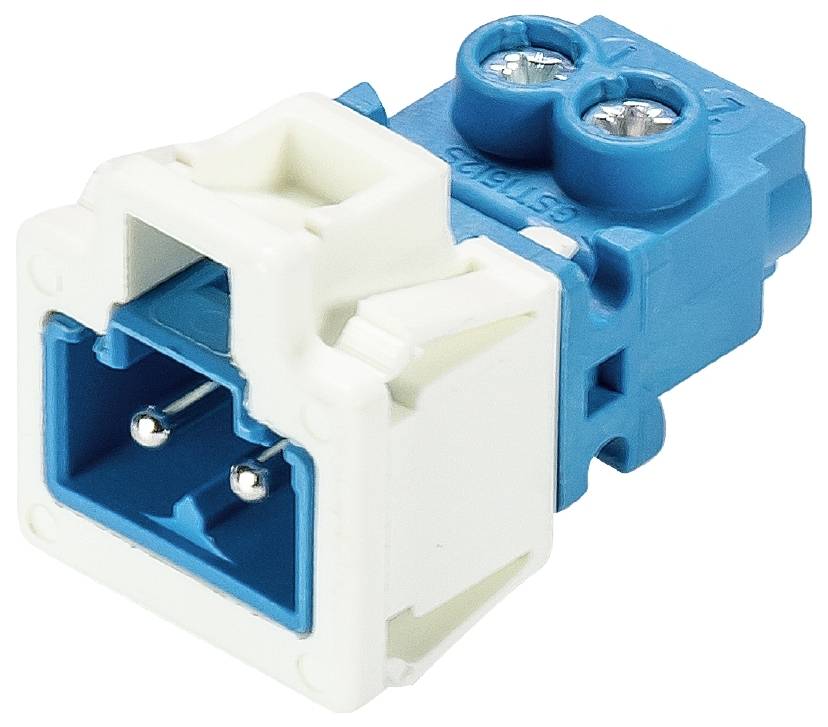

Wieland Electric 91.922.9353.0 Appliance connector
EAN:
Part number:
Item no:
Number
Total (€ 2.79 / piece)
€ 2.79
incl. VAT
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
50 V
- Test current
16 A
- Number of pins
2
IP20
18 mm
Plug
TRUE
19.6 mm
Screw connection
Integrated in plug-in connector
16 A
50 V
2
30.2 mm
Polyamide (PA)
Silver-plated
2
Straight
TRUE
4 kV
CuZn
IP20
1
1, 2
Blue
0.031 kWh
Snap-in/screw-in device
White
0.5-2.5 mm²
0.5-2.5 mm²
100 °C
5012
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282336 Wieland Electric 91.922.9353.0 Appliance connector
Description
Gesis® MINI device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of poles: 2
Plug version
Connection type: screw terminals.
Rated voltage: 50 V
Rated current 16 A
Coding color / contact insert light blue
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of poles: 2
Plug version
Connection type: screw terminals.
Rated voltage: 50 V
Rated current 16 A
Coding color / contact insert light blue
This text is machine translated.
