Wieland Electric 92.032.9658.1 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
5
7% = € 0.18
€ 2.58
10
9% = € 0.26
€ 2.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Number of pins
3
IP20
32.8
Plug
TRUE
17.5 mm
Spring clamp connection
Black
Integrated in plug-in connector
20 A
250 V
3
37.5 m
Polyamide (PA)
Tinned
2
Straight
TRUE
4 kV
CuZn
IP20
2
L, N, PE
Black
0.065
Snap-in/screw-in device
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282493 Wieland Electric 92.032.9658.1 Appliance connector
Description

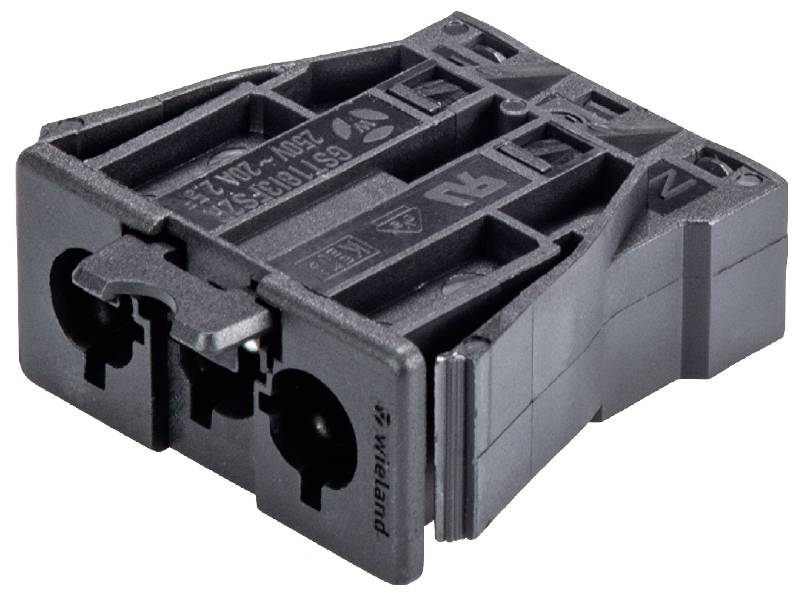

Gesis® CLASSIC device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of poles: 3
Plug version
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of poles: 3
Plug version
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
