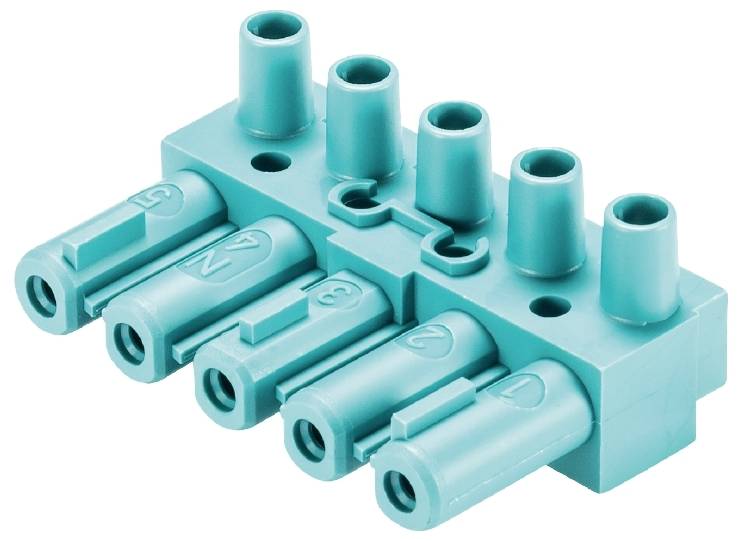

Wieland Electric 92.051.3953.0 Appliance connector
EAN:
Part number:
Item no:
Number
Total (€ 3.29 / piece)
€ 3.29
incl. VAT
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
5
IP20
47.7 mm
Bus
TRUE
19.5 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
5
31.5 mm
Polyamide (PA)
Tinned
2
Straight
TRUE
4 kV
CuZn
IP20
1
1, 2, 3, 4, 5
Blue
0.06 kWh
Built-in part/plug-in connection
0.75-4 mm²
0.75-4 mm²
100 °C
5018
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282713 Wieland Electric 92.051.3953.0 Appliance connector
Description
Gesis® CLASSIC device connection
Mounting part
Screw terminal connection easy
Number of pins: 5
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert, turquoise
This text is machine translated.
Mounting part
Screw terminal connection easy
Number of pins: 5
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert, turquoise
This text is machine translated.
