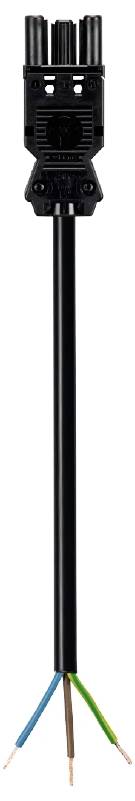

Wieland Electric 92.232.1003.1 Cable Black 1 m
EAN:
Part number:
Item no:
Number
Total (€ 4.99 / piece)
€ 4.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
1 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
8.3 mm
- Cable Ø up to
8.3 mm
- Cable Ø range
8.3 - 8.3 mm
- Number of pins
3
IP40
- System
gesis® CLASSIC
FALSE
1.5 mm²
H05VV-F
Black
Integrated in plug-in connector
16 A
250 V
1000 m
3
Polyamide (PA)
Black
8.3-8.3 mm
Tinned
2
TRUE
4 kV
11.9 mΩ
CuZn
IP20
L, N, PE
Black
0.465
9 mm
37
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282693 Wieland Electric 92.232.1003.1 Cable Black 1 m
Description
Gesis® CLASSIC connection cable
Female connector - free end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 1 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Female connector - free end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 1 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
