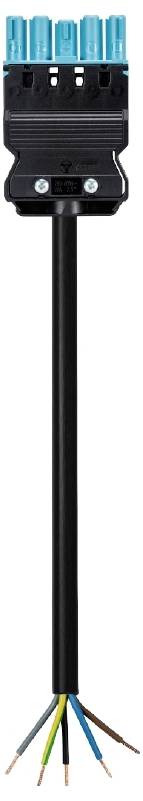

Wieland Electric 92.357.5063.9 Cable Black 5 m
EAN:
Part number:
Item no:
Number
Total (€ 28.99 / piece)
€ 28.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
5 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Number of pins
5
IP40
- System
gesis® CLASSIC
TRUE
1.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
16 A
250 V
5000 mm
5
Black
Tinned
2
TRUE
4 kV
57.45 mOhm
IP40
L, N, PE, D1, D2
Blue
2.777 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
5024
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284864 Wieland Electric 92.357.5063.9 Cable Black 5 m
Description
Gesis® CLASSIC connection cable
Socket - free end with test interface
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 5 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert pastel blue
This text is machine translated.
Socket - free end with test interface
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 5 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert pastel blue
This text is machine translated.
