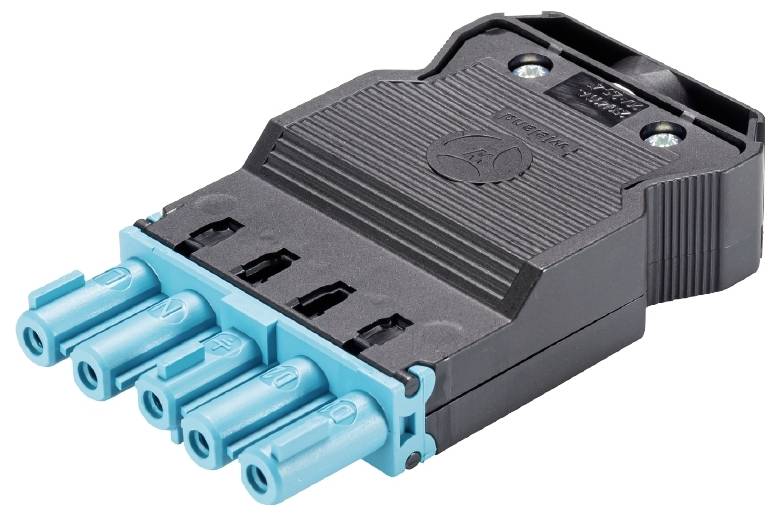

Wieland Electric 92.953.5453.0 Connector
EAN:
Part number:
Item no:
Number
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
15.5 mm
- Cable Ø up to
11.5 mm
- Cable Ø range
11.5 - 15.5 mm
- Number of pins
5
IP40
- System
gesis® CLASSIC
47.8 mm
Bus
TRUE
17.5 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
5
84.4 mm
Polyamide (PA)
11.5-15.5 mm
Tinned
2
TRUE
4 kV
0.4 mOhm
CuZn
IP40
1
L, N, PE, D1, D2
Blue
0.179 kWh
0.75-4 mm²
0.75-4 mm²
100 °C
5024
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284766 Wieland Electric 92.953.5453.0 Connector
Description
Gesis® CLASSIC connector
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 11.5 - 15.5 mm
Coding color / contact insert pastel blue
This text is machine translated.
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 11.5 - 15.5 mm
Coding color / contact insert pastel blue
This text is machine translated.
