Wieland Electric 96.031.6053.1 Appliance connector
EAN:
Part number:
Item no:
Number
Total (€ 12.99 / piece)
€ 12.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
3
IP66
35 mm
Bus
TRUE
35 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
3
68.2 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.55 mOhm
CuZn
M20
IP66
1
L, N, PE
Black
0.209 kWh
Black
0.75-6 mm²
0.75-6 mm²
100 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285399 Wieland Electric 96.031.6053.1 Appliance connector
Description

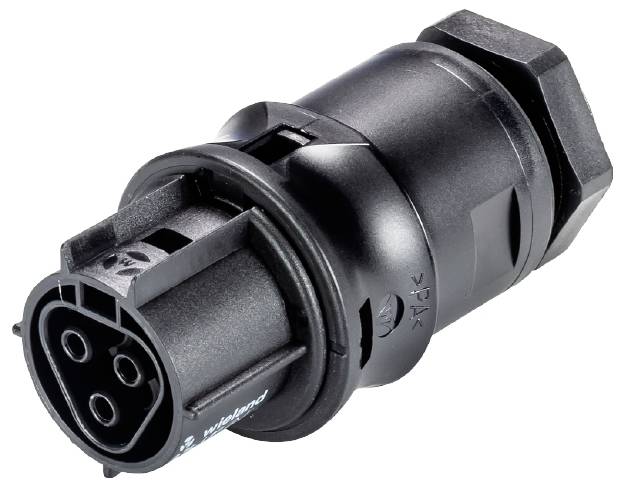

RST® CLASSIC device connection
Modular
straight
M20
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
Modular
straight
M20
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
