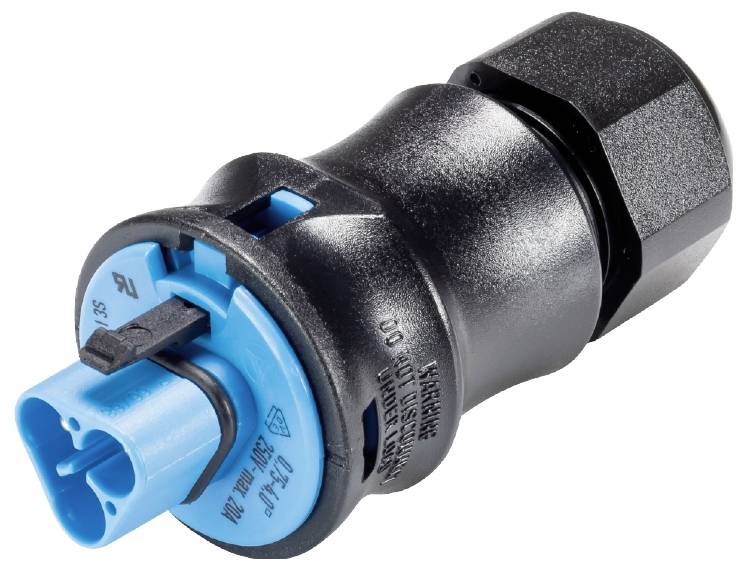

Wieland Electric 96.032.4153.9 Connector
EAN:
Part number:
Item no:
Number
Total (€ 9.99 / piece)
€ 9.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- Number of pins
3
IP66
34.6 mm
Plug
TRUE
34.6 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
3
79.1 mm
Polyamide (PA)
10-14 mm
Silver-plated
3
4 kV
CuZn
IP66
1
1, 2, 3
Blue
0.272 kWh
0.75-6 mm²
0.75-6 mm²
100 °C
5012
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285371 Wieland Electric 96.032.4153.9 Connector
Description
RST® CLASSIC connectors
straight
Number of poles: 3
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert light blue
This text is machine translated.
straight
Number of poles: 3
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert light blue
This text is machine translated.
