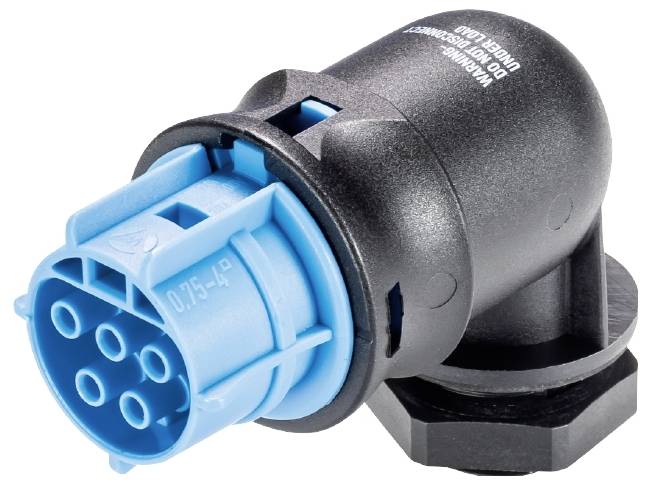

Wieland Electric 96.053.6053.9 Appliance connector
EAN:
Part number:
Item no:
Number
Total (€ 16.99 / piece)
€ 16.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
90-degree
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
5
IP66
34.6 mm
Bus
TRUE
54.3 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
5
73.4 mm
Polyamide (PA)
Silver-plated
3
Right-angled
4 kV
0.55 mOhm
CuZn
M20
IP66
1
1, 2, 3, 4, 5
Blue
0.24 kWh
Black
0.75-4 mm²
0.75-4 mm²
100 °C
5012
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285626 Wieland Electric 96.053.6053.9 Appliance connector
Description
RST® CLASSIC device connection
Modular
90° angle
M20
Number of pins: 5
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert light blue
This text is machine translated.
Modular
90° angle
M20
Number of pins: 5
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert light blue
