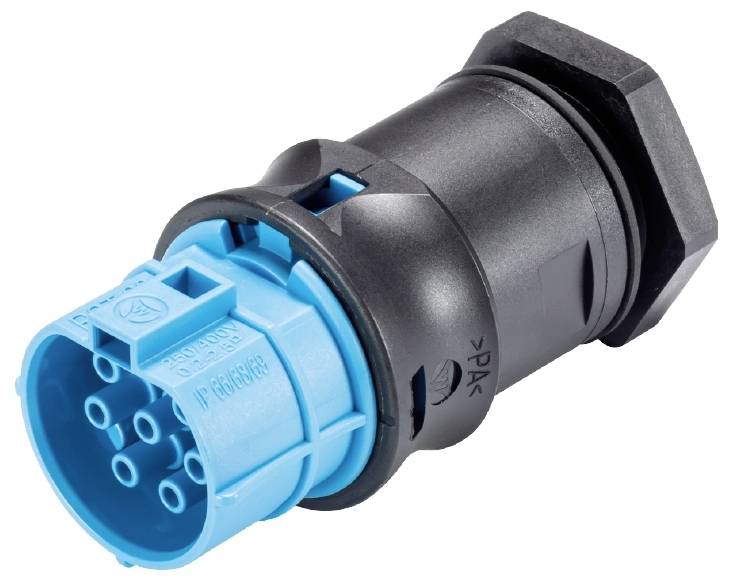

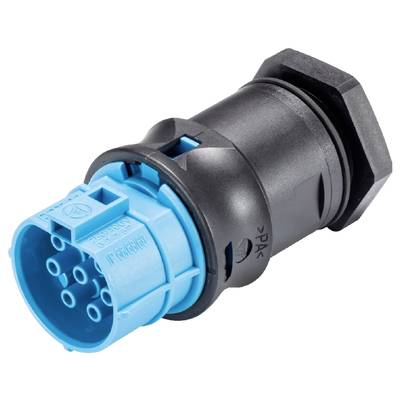

Wieland Electric 96.071.6253.9 Appliance connector
EAN:
Part number:
Item no:
Number
Total (€ 17.99 / piece)
€ 17.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
7
IP66
34.6 mm
Bus
TRUE
34.6 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
7
73 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.65 mOhm
CuZn
M25
IP66
1
Blue
0.254 kWh
Black
0.2-2.5 mm²
0.2-2.5 mm²
100 °C
5012
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285939 Wieland Electric 96.071.6253.9 Appliance connector
Description
RST® CLASSIC device connection
Modular
straight
M25
Number of poles 7
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert light blue
This text is machine translated.
Modular
straight
M25
Number of poles 7
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert light blue
This text is machine translated.
