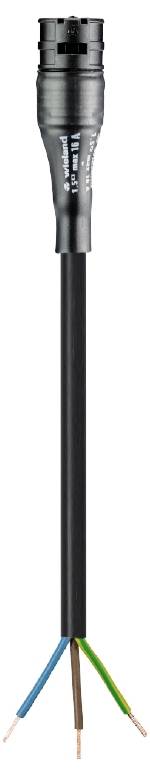

Wieland Electric 96.233.20B3.1 Cable Black 2 m
EAN:
Part number:
Item no:
Number
Total (€ 26.99 / piece)
€ 26.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
2 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
10.1 mm
- Cable Ø up to
9.7 mm
- Cable Ø range
9.7 - 10.1 mm
- Number of pins
3
IP66
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
2000 mm
3
Black
9.7-10.1 mm
Silver-plated
3
4 kV
14.23 mOhm
IP66
L, N, PE
Black
1.048 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
B2ca
s1
d1
a1
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286621 Wieland Electric 96.233.20B3.1 Cable Black 2 m
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 2 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 2 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
