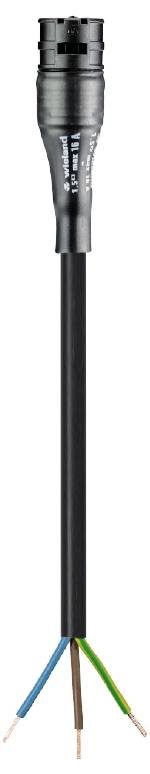

Wieland Electric 96.233.7053.1 Cable Black 7 m
EAN:
Part number:
Item no:
Number
Total (€ 57.99 / piece)
€ 57.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
7 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10.9 mm
- Cable Ø range
10.9 - 14 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
TRUE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
20 A
250 V
7000 mm
3
Black
10.9-14 mm
Silver-plated
3
4 kV
48.43 mOhm
IP66
L, N, PE
Black
5.684 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
90 °C
None
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286792 Wieland Electric 96.233.7053.1 Cable Black 7 m
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Conductor type H07RN-F - Enhanced Version
Total length 7 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Conductor type H07RN-F - Enhanced Version
Total length 7 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
