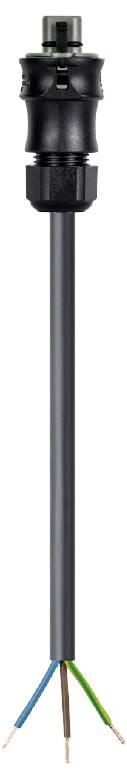

Wieland Electric 96.834.3034.3 Cable Black 3 m
EAN:
Part number:
Item no:
Number
Total (€ 39.99 / piece)
€ 39.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
3 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
25 A
- Cable standard
H07RN-F 3G 4 mm²
- Cable Ø (max.)
13.7 mm
- Cable Ø up to
13.1 mm
- Cable Ø range
13.1 - 13.7 mm
- Number of pins
3
IP66
- Max. ambient temperature
60 °C
FALSE
4 mm²
H07RN-F
Black
Integrated in plug-in connector
25 A
250 V
3000 m
3
Polyamide (PA)
Black
13.1-13.7 mm
Silver-plated
3
TRUE
4 kV
13.38 mΩ
CuZn
IP66
L, N, PE
Grey
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
7023
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289288 Wieland Electric 96.834.3034.3 Cable Black 3 m
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 25 A
Cable type H07RN-F
Total length 3 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 25 A
Cable type H07RN-F
Total length 3 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
