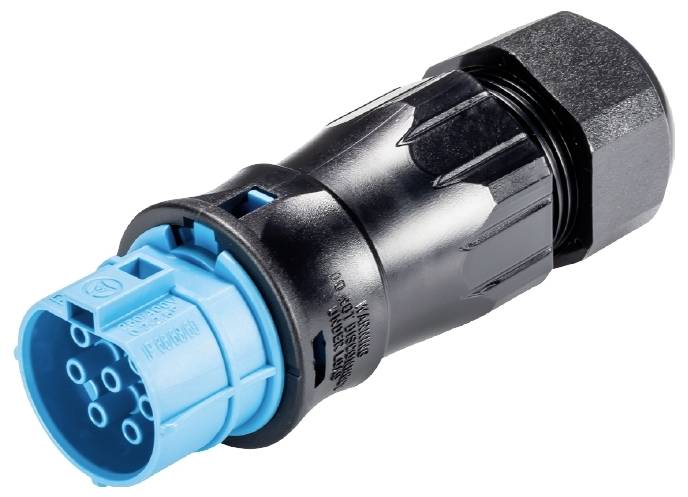

Wieland Electric 9L.171.0853.9 Connector
EAN:
Part number:
Item no:
Number
Total (€ 17.99 / piece)
€ 17.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Crimp
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
13 mm
- Cable Ø up to
8 mm
- Cable Ø range
8 - 13 mm
- Number of pins
7
IP66
- System
gesis® CLASSIC
35.4 mm
Bus
TRUE
35.4 mm
Crimp
Integrated in plug-in connector
20 A
250 V
TRUE
7
102 mm
Polyamide (PA)
8-13 mm
Silver-plated
3
4 kV
0.65 mOhm
CuZn
IP66
1
Blue
0.75-2.5 mm²
100 °C
5012
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289325 Wieland Electric 9L.171.0853.9 Connector
Description
RST® CLASSIC connectors
straight
Number of poles 7
Socket
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 8 - 13 mm
Contact seal yes
Coding color / contact insert light blue
This text is machine translated.
straight
Number of poles 7
Socket
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 8 - 13 mm
Contact seal yes
Coding color / contact insert light blue
