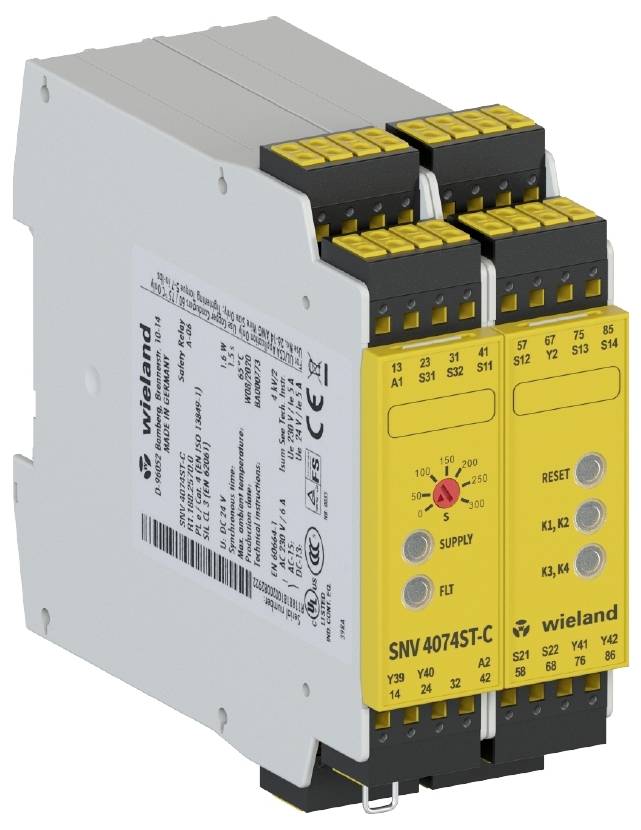

Wieland Electric SNV4074ST-C 300S AC115-230V R1.188.2810.0 Main unit No. of relay outputs: 8
EAN:
Part number:
Item no:
Product type
Main unit
No. of relay outputs
8
Type
SNV4074ST-C 300S AC115-230V
Dim
(W x H) 45 mm x 106.5 mm
Width
45 mm
Number
Total (€ 635.00 / piece)
€ 635.00
incl. VAT
14-day return policy included
Technical specifications
- Type
SNV4074ST-C 300S AC115-230V
- Product type
Main unit
- No. of relay outputs
8
- Dim
(W x H) 45 mm x 106.5 mm
- Width
45 mm
- Height
106.5 mm
- Type
Basic device
45
Basic device
96.5 mm
114 mm
TRUE
TRUE
TRUE
2
2
2
2
2
2
0
0
Spring clamp connection
TRUE
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
1
2-channel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272822 Wieland Electric SNV4074ST-C 300S AC115-230V R1.188.2810.0 Main unit No. of relay outputs: 8
Description
Basis
Single or two-channel control through contacts or semiconductors
Automatic/manual reset with reset button monitoring
2 Instant Releases
2 releases with delay without re-triggering
2 signal contacts immediately
2 signal contacts on delay
0 - 300s continuously variable
AC 115-230 V.
Spring power clamps can be plugged
This text is machine translated.
Single or two-channel control through contacts or semiconductors
Automatic/manual reset with reset button monitoring
2 Instant Releases
2 releases with delay without re-triggering
2 signal contacts immediately
2 signal contacts on delay
0 - 300s continuously variable
AC 115-230 V.
Spring power clamps can be plugged
This text is machine translated.
