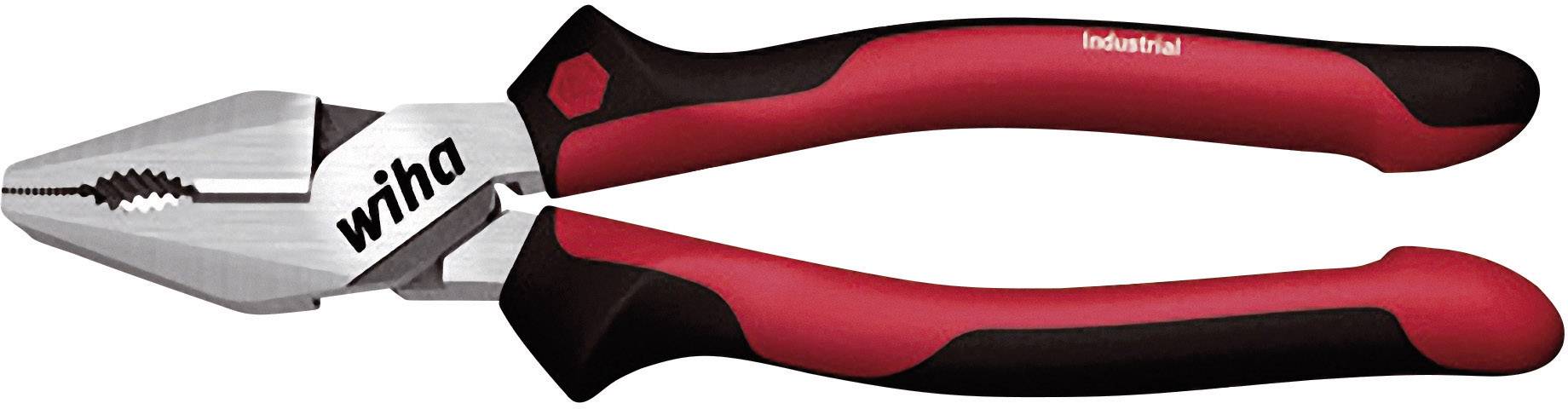

Wiha 10338 Workshop Kraft comb pliers 225 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Kraft comb pliers
- Manufacturer part #
10338
- Range of use
Workshop
- Length
225 mm
- Material
Tool steel
- Material properties
C70
quenched and tempered
tempered
- Edge hardness
64 HRC
- Wire hardness (max.) medium wire
4.2 mm
- Wire hardness (max.) hard wire
3 mm
- Wire hardness piano wire (max.)
2.5 mm
- Weight
330 g
- Standards
DIN ISO 5746
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 283745 Wiha 10338 Workshop Kraft comb pliers 225 mm
Description
Standards: DIN ISO 5746. Head shape: Extra long cutting edge for flat and round cables. Design: OptiGrip - the newly designed gripping surface with 'triple-point support' ensures optimal hold of the workpiece while working. Particularly powerful leverage results in 40% less effort being required for cutting tasks compared with standard combination pliers. Cutting edges additionally inductively hardened to approx. 64 HRC, therefore also appropriate for cutting piano wire. The Wiha DynamicJoint® ensures optimal transmission of hand strength to the cutting edges. Material: High quality C 70 tool steel, specially tempered. Application: Power assisted general purpose pliers for gripping and holding as well as cutting wires and cables ranging in hardness from soft to extremely hard.
Features
- Standards: DIN ISO 5746
- Head shape: Extra long blades for flat and round cables
- Design: opti-grip the newly designed grip surface with "three-point support" ensures a perfect grip when working. Particularly powerful leverage means 40% less manual force is required for cutting compared to standard combination pliers
- Blades also induction-hardened to approx. 64 HRC and therefore also suitable for cutting piano wire. The Wiha DynamicJoint ensures optimal transmission of hand strength to the cutting edges
- Material: High-quality tool steel, tempered
- Application: Optimized leverage universal pliers for gripping and holding as well as cutting soft to extremely hard wires and cables.
Hints
This text is machine translated.
