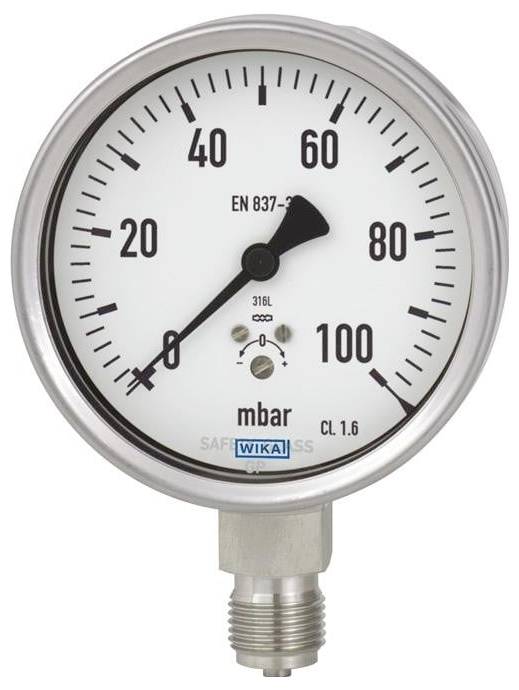

Image similar
WIKA 632.50 Pressure gauge Bottom 0 up to 100 mbar
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type 632.50
- Case: CrNi steel
- Unit: Mbar
- Display range 0 mbar...100 mbar
- Process connection: 1/2 NPT
- Needle mechanism: CrNi steel
- Measurement system CrNi steel
- Nominal size 160 mm
- Connection position: Below
- Viewing glass: Multi-layered safety glass
- Pressure gauge standard: International (Europe)
- Housing filling: Without
- Ring: Bayonet ring, CrNi steel
- Scale color for 1.Division (outside): Black
- Face background: White
- IP 54 protection
- Packaging: Individual packaging
- Standard label on dial: *EN 837-3*
- Accuracy class dial: *Cl.1.6*
- Housing with ex-hole
- Permissible ambient temperature: Standard
- Case material: CrNi steel
- Permissible temperature of the measured substance: Standard
- Product type
Pressure gauge
- Min. display range
0 mbar
- Display range (max.)
100 mbar
- Manufacturer part #
9757745
- Material (details)
CrNi steel
- Dim
(Ø) 160 mm
- Connection
1/2 NPT
- Connector
Bottom
- Max. operating pressure
100 mbar
- Operating pressure (min.)
0 mbar
- Pressure range
0 up to 100 mbar
- (Ø)
160 mm
IP54
Documents & Downloads
Datasheet
Datasheet 3526012 WIKA 632.50 Pressure gauge Bottom 0 up to 100 mbar
User & Safety Instructions
User & Safety Instructions 3526012 WIKA 632.50 Pressure gauge Bottom 0 up to 100 mbar
Description
Pressure gauge with capsule spring, chemical design
Type 632.50
Technical data according to data sheet PM 06.03
Measurement system CrNi steel
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Needle mechanism: CrNi steel
Housing filling: Without
Nominal size 160 mm
Unit: Mbar
Display range 0 mbar...100 mbar
Process connection: 1/2 NPT
Connection position: Below
Housing with ex-hole
IP 54 protection
Packaging: Individual packaging
Permissible ambient temperature: Standard
Permissible temperature of the measured substance: Standard
Case material: CrNi steel
Viewing glass: Multi-layered safety glass
Face labels
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Face background: White
Manufacturer logo: *WIKA*
FORTLFD.-NO. *...*
Standard label on dial: *EN 837-3*
Accuracy class dial: *Cl.1.6*
Individual package labels: Standard (with Wika logo)
Labels Outer packaging: Standard (with Wika logo)
This text is machine translated.
Type 632.50
Technical data according to data sheet PM 06.03
Measurement system CrNi steel
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Needle mechanism: CrNi steel
Housing filling: Without
Nominal size 160 mm
Unit: Mbar
Display range 0 mbar...100 mbar
Process connection: 1/2 NPT
Connection position: Below
Housing with ex-hole
IP 54 protection
Packaging: Individual packaging
Permissible ambient temperature: Standard
Permissible temperature of the measured substance: Standard
Case material: CrNi steel
Viewing glass: Multi-layered safety glass
Face labels
Pressure gauge standard: International (Europe)
Scale color for 1.Division (outside): Black
Face background: White
Manufacturer logo: *WIKA*
FORTLFD.-NO. *...*
Standard label on dial: *EN 837-3*
Accuracy class dial: *Cl.1.6*
Individual package labels: Standard (with Wika logo)
Labels Outer packaging: Standard (with Wika logo)
This text is machine translated.
