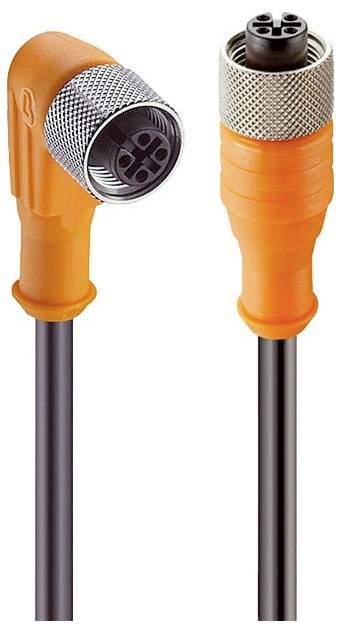

Image similar
WIKA 79100672 Sensor/actuator cable M12 x 1 5 m No. of pins (RJ): 5 1 pc(s)
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12 socket, straight
Connection side B
Cable, open end
No. of pins
5
Cable length
5 m
Datasheet (PDF)
Technical specifications
- Type: EZE53 adapter cable, with cable socket and plug
- Cable length 5 m Ø5,05 mm - Ø6 mm
- PROTECTION CLASS IP IP65/IP67
- Design: standard
- Cable material PUR
- Connection assignment 5-pole
- Wire cross-section 5 x 0.34 mm2
- Terminal version 1: M12x1, straight coupling
- Coding port 1: A-coded
- Connection version 2: Open end
- Shielding: shielded
- Temperature range: -40 … +80°C (fixed installation)
- Type
EZE53
- Product type
Sensor/actuator cable
- Connection side A
M12 socket, straight
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
5 m
- Jacket material
PUR
- Connector cross-section (max.)
0.34 mm²
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Socket
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M12 x 1
- max. cross section
0.34 mm²
- Min. cross section
0.34 mm²
IP65
IP67
- Features
Shielded
- Min. temperature
-40 °C
- Max. temperature
80 °C
- Manufacturer part #
79100672
- Content
1 pc(s)
- Cable Ø (max.)
6 mm
- Cable Ø up to
5.05 mm
- Cable Ø range
5.05 - 6 mm
Documents & Downloads
Datasheet
Datasheet 3524545 WIKA 79100672 Sensor/actuator cable M12 x 1 5 m No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524545 WIKA 79100672 Sensor/actuator cable M12 x 1 5 m No. of pins (RJ): 5 1 pc(s)
Description
EZE53 5 m M12x1, straight coupling 5-pin IP65/IP67
Type: EZE53 adapter cable, with cable socket and plug
Design: standard
Cable length 5 m Ø5,05 mm - Ø6 mm
Cable material PUR
Wire cross-section 5 x 0.34 mm2
Terminal version 1: M12x1, straight coupling
Coding port 1: A-coded
Connection version 2: Open end
Connection assignment 5-pole
Shielding: shielded
Temperature range: -40 … +80°C (fixed installation)
PROTECTION CLASS IP IP65/IP67
Technical data according to data sheet: AC50.08
This text is machine translated.
Type: EZE53 adapter cable, with cable socket and plug
Design: standard
Cable length 5 m Ø5,05 mm - Ø6 mm
Cable material PUR
Wire cross-section 5 x 0.34 mm2
Terminal version 1: M12x1, straight coupling
Coding port 1: A-coded
Connection version 2: Open end
Connection assignment 5-pole
Shielding: shielded
Temperature range: -40 … +80°C (fixed installation)
PROTECTION CLASS IP IP65/IP67
Technical data according to data sheet: AC50.08
This text is machine translated.
