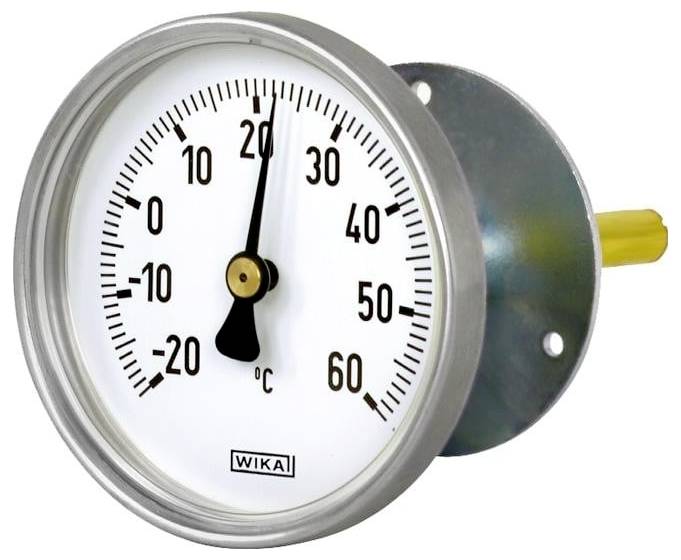

WIKA A48 Bimetallic thermometer
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: A48 for air-conditioning and ventilation technology
- Unit: °C
- Display range: -20 °C ... +60 °C
- Process connection: Flange St.VZN, movable,hole kr.51/D61
- Mounting length L1: 160 mm
- Dip-shank material: Cu alloy
- Submersible shaft diameter 9 mm
- Viewing panel: Plastic, SAN
- Accuracy class CL. 2 according to DIN EN 13190
- Pointer: Aluminium, black
- Face background: White
- Case material: Aluminium
- Device type: Standard, with aluminum housing
- Nominal size [nG, d1]: 63 mm
- Data sheet: TM48.01
- Product type
Bimetallic thermometer
- Min. display range
-20 °C
- Display range (max.)
+60 °C
- Type
Flange St. VZN, movable, punched hole kr.51/D61
- Operating temperature
-20 °C (min)
- Min. operating temperature
-20 °C
- Manufacturer part #
3903206
- Dim
(Ø) 9 mm
- (Ø)
9 mm
Documents & Downloads
Datasheet
Datasheet 3526434 WIKA A48 Bimetallic thermometer
User & Safety Instructions
User & Safety Instructions 3526434 WIKA A48 Bimetallic thermometer
Description
Bimetal thermometer TYP48-50
Type: A48 for air-conditioning and ventilation technology
Device type: Standard, with aluminum housing
Nominal size [nG, d1]: 63 mm
Case material: Aluminium
Unit: °C
Display range: -20 °C ... +60 °C
Mounting length L1: 160 mm
Submersible shaft diameter 9 mm
Dip-shank material: Cu alloy
Process connection: Flange St.VZN, movable,hole kr.51/D61
Manufacturer logo: *WIKA*
Pointer: Aluminium, black
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Face background: White
Data sheet: TM48.01
This text is machine translated.
Type: A48 for air-conditioning and ventilation technology
Device type: Standard, with aluminum housing
Nominal size [nG, d1]: 63 mm
Case material: Aluminium
Unit: °C
Display range: -20 °C ... +60 °C
Mounting length L1: 160 mm
Submersible shaft diameter 9 mm
Dip-shank material: Cu alloy
Process connection: Flange St.VZN, movable,hole kr.51/D61
Manufacturer logo: *WIKA*
Pointer: Aluminium, black
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Face background: White
Data sheet: TM48.01
This text is machine translated.
