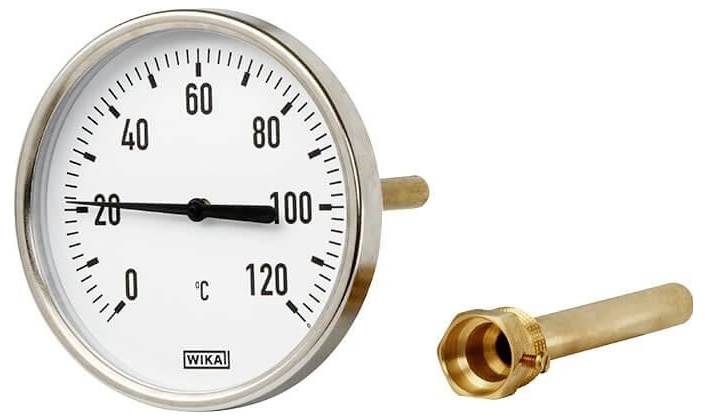

Image similar
WIKA A50 Bimetallic thermometer
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: A50 standard version
- Unit: °C
- Display range: 0 °C ... 60 °C
- Process connection G 1/2 B
- Mounting length L1: 40 mm
- Dip-shank material: Cu alloy
- Submersible shaft diameter 9 mm
- Viewing panel: Plastic, SAN
- Accuracy class CL. 2 according to DIN EN 13190
- Pointer: Plastic, black
- Face background: White
- Housing material: Steel sheet, galvanized
- Standard type, with steel plate housing
- Nominal size [nG, d1]: 100 mm
- Protective tube: Removable, with locking screw;
- Protective tube material: Copper alloy
- Data sheet: TM50.03
- Product type
Bimetallic thermometer
- Min. display range
0 °C
- Display range (max.)
60 °C
- Type
G 1/2 B
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
12282821
- Dim
(Ø) 9 mm
- (Ø)
9 mm
Documents & Downloads
Datasheet
Datasheet 3526196 WIKA A50 Bimetallic thermometer
User & Safety Instructions
User & Safety Instructions 3526196 WIKA A50 Bimetallic thermometer
Description
Bimetal thermometer TYP48-50
Type: A50 standard version
Standard type, with steel plate housing
Nominal size [nG, d1]: 100 mm
Housing material: Steel sheet, galvanized
Unit: °C
Display range: 0 °C ... 60 °C
Mounting length L1: 40 mm
Submersible shaft diameter 9 mm
Dip-shank material: Cu alloy
Protective tube: Removable, with locking screw;
Protective tube material: Copper alloy
Process connection G 1/2 B
Manufacturer logo: *WIKA*
Pointer: Plastic, black
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Face background: White
Data sheet: TM50.03
This text is machine translated.
Type: A50 standard version
Standard type, with steel plate housing
Nominal size [nG, d1]: 100 mm
Housing material: Steel sheet, galvanized
Unit: °C
Display range: 0 °C ... 60 °C
Mounting length L1: 40 mm
Submersible shaft diameter 9 mm
Dip-shank material: Cu alloy
Protective tube: Removable, with locking screw;
Protective tube material: Copper alloy
Process connection G 1/2 B
Manufacturer logo: *WIKA*
Pointer: Plastic, black
Viewing panel: Plastic, SAN
Accuracy class CL. 2 according to DIN EN 13190
Face background: White
Data sheet: TM50.03
This text is machine translated.
