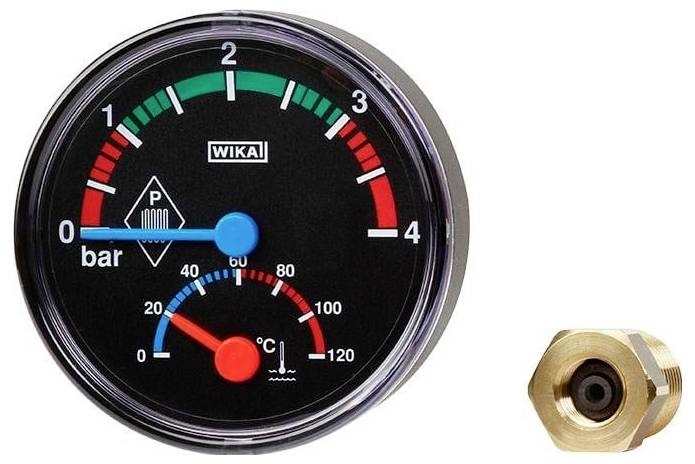

WIKA Bimetallic thermo/manometer 14112459 THM10 Connector (pressure gauge): Back side 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type THM10
- Housing: Black plastic
- Display range: 0 °C ... 120 °C
- Nominal size 080 mm
- Measuring range: Pressure measuring range
- Connection position: Rear central (Axial)
- Viewing glass: Plastic, snapped in
- Unit Pressure: Bar
- Temperature unit: °C
- Shut-off valve: G1/4 x R1/2-ISO7 shut-off valve
- Process connection according to factory standard: G1/4B
- Arcs / Sectors: Arcs 0...1 bar and 3 bar...3 o'clock red / 1...3 bar green / 0...60°C blue / 60...120°C red
- Product type
Bimetallic thermo/manometer
- Min. display range
0 °C
- Display range (max.)
120 °C
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
14112459
- Material (details)
Plastic black
- Dim
(Ø) 080 mm
- Connector
Back side
- (Ø)
080 mm
Documents & Downloads
Datasheet
Datasheet 3527022 WIKA Bimetallic thermo/manometer 14112459 THM10 Connector (pressure gauge): Back side 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527022 WIKA Bimetallic thermo/manometer 14112459 THM10 Connector (pressure gauge): Back side 1 pc(s)
Description
Thermo-thermometer type THM10
Technical data according to data sheet PM 01.24
Type THM10
Nominal size 080 mm
Unit Pressure: Bar
Temperature unit: °C
Display range 0...4 bar
Measuring range: Pressure measuring range
Display range: 0 °C ... 120 °C
Shut-off valve: G1/4 x R1/2-ISO7 shut-off valve
Process connection according to factory standard: G1/4B
Connection position: Rear central (Axial)
Housing: Black plastic
Viewing glass: Plastic, snapped in
Arcs / Sectors: Arcs 0...1 bar and 3 bar...3 o'clock red / 1...3 bar green / 0...60°C blue / 60...120°C red
Manufacturer logo: *WIKA*
