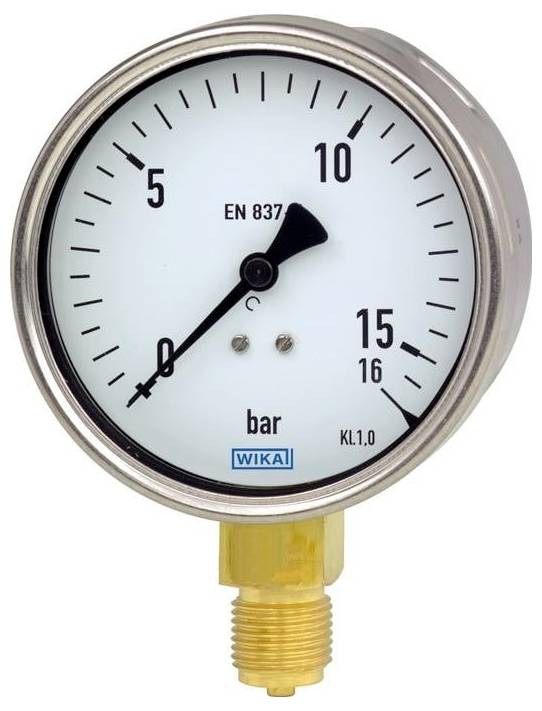

WIKA Bourdon tube gauge 9051724 212.20 Connector (pressure gauge): Bottom 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type 212.20
- Case: CrNi steel
- Display range: -1200...0 mbar
- Process connection G 1/2 B
- Measuring system: Copper alloy
- Nominal size 100 mm
- Measuring range: Vacuum and +/- measurement range
- Connection position: Below
- Viewing panel: Instrument flat glass
- Accuracy class: Class 1.0
- Pressure gauge standard: International (Europe)
- Serial number on dial: FORTLFD.-NR. *...*
- Main scale unit: Mbar
- Ring: Bayonet ring, CrNi steel
- Pointer: Standard pointer
- Packaging: Packaging with increased shock resistance
- Product type
Bourdon tube gauge
- Min. display range
-1.2 bar
- Display range (max.)
0 bar
- Manufacturer part #
9051724
- Material (details)
CrNi steel
- Dim
(Ø) 100 mm
- Connection
G 1/2
- Connector
Bottom
- (Ø)
100 mm
Documents & Downloads
Datasheet
Datasheet 3526874 WIKA Bourdon tube gauge 9051724 212.20 Connector (pressure gauge): Bottom 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3526874 WIKA Bourdon tube gauge 9051724 212.20 Connector (pressure gauge): Bottom 1 pc(s)
Description
Pressure gauge with tubular spring, robust design
Type 212.20
Technical data according to data sheet PM 02.01
Measuring system: Copper alloy
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Measuring system: Copper alloy
Nominal size 100 mm
Main scale unit: Mbar
Measuring range: Vacuum and +/- measurement range
Display range: -1200...0 mbar
Process connection G 1/2 B
Connection position: Below
Viewing panel: Instrument flat glass
Pointer: Standard pointer
Accuracy class: Class 1.0
Packaging: Packaging with increased shock resistance
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
This text is machine translated.
Type 212.20
Technical data according to data sheet PM 02.01
Measuring system: Copper alloy
Case: CrNi steel
Ring: Bayonet ring, CrNi steel
Measuring system: Copper alloy
Nominal size 100 mm
Main scale unit: Mbar
Measuring range: Vacuum and +/- measurement range
Display range: -1200...0 mbar
Process connection G 1/2 B
Connection position: Below
Viewing panel: Instrument flat glass
Pointer: Standard pointer
Accuracy class: Class 1.0
Packaging: Packaging with increased shock resistance
Pressure gauge standard: International (Europe)
Manufacturer logo: *WIKA*
Serial number on dial: FORTLFD.-NR. *...*
This text is machine translated.
