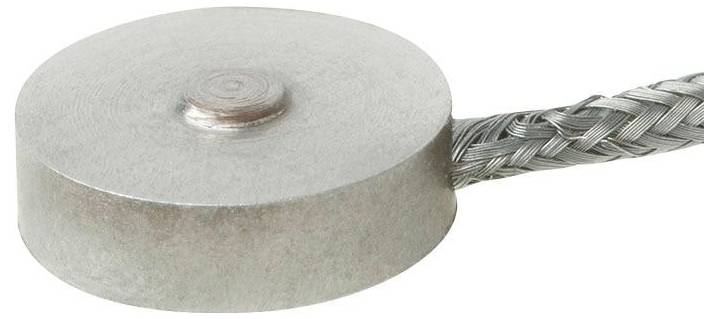

WIKA F1222 Force sensor 0 - 10 N Manufacturer's standards (no certificate)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: F1222 miniature force transducer, 0...10N to 0...5.000N
- Force direction: Pressure
- Nominal force/nominal load 10 N
- Relative linearity deviation: 1.0% Fnom
- Output signal 1.0 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length: 1.5 m
- Protection class IP IP65
- Product type
Force sensor
- Force reading range (max.)
10 N
Manufacturer's standards (no certificate)
- Basic accuracy
1.0 %
- Force reading range
0 - 10 N
- Force reading range (min.)
0 N
IP65
Documents & Downloads
Datasheet
Datasheet 3524610 WIKA F1222 Force sensor 0 - 10 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524610 WIKA F1222 Force sensor 0 - 10 N Manufacturer's standards (no certificate)
Description
SPP pressure sensor, type F1222
Technical data according to data sheet: FO51.11
Type: F1222 miniature force transducer, 0...10N to 0...5.000N
Force direction: Pressure
Nominal force/nominal load 10 N
Relative linearity deviation: 1.0% Fnom
Output signal 1.0 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 1.5 m
Protection class IP IP65
This text is machine translated.
Technical data according to data sheet: FO51.11
Type: F1222 miniature force transducer, 0...10N to 0...5.000N
Force direction: Pressure
Nominal force/nominal load 10 N
Relative linearity deviation: 1.0% Fnom
Output signal 1.0 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 1.5 m
Protection class IP IP65
This text is machine translated.
