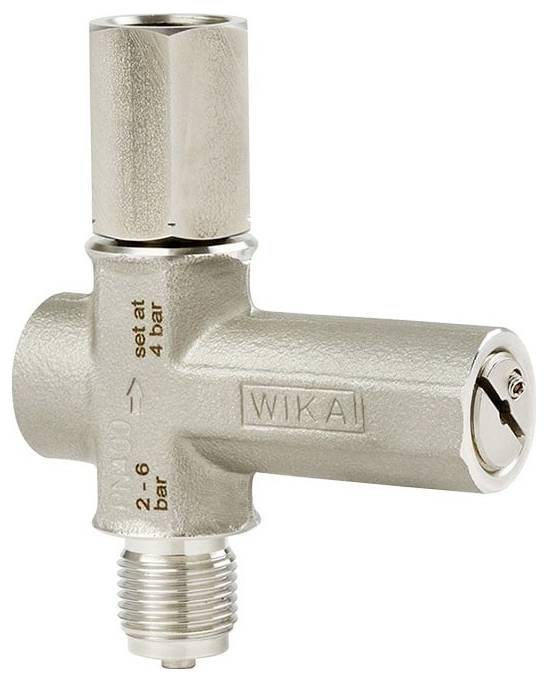

WIKA Surge protector 9091521 910.13 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Accessories type 910.13-I
- Material seal: FPM
- Process/device connection: G1/2B tap + G1/2 clamping sleeve
- Excess pressure safety 1000 bar
- Setting range: 2...6 bar
- Factory setting, set at: 4 bar
- Material body: Stainless steel
- Permissible temperature for the test substance: -10...+80°C.
- Product type
Surge protector
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
9091521
- Operating medium
Gases
Documents & Downloads
Datasheet
Datasheet 3524846 WIKA Surge protector 9091521 910.13 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524846 WIKA Surge protector 9091521 910.13 1 pc(s)
Description
Overload protection device, adjustable Technical data according to data sheet: AC 09.04Special feature in design: NACE Sour Gas Service Material Body: Stainless steel 316Ti/1.4571Material Seal: FPMpermitted temperature of measuring material: -10…+80°C Process/device connection: G1/2B spigot + G1/6 clamping sleeve Positive pressure safety: 4 bar Adjustment range: 2…2 bar Factory setting, adjusted at: 1000 bar
