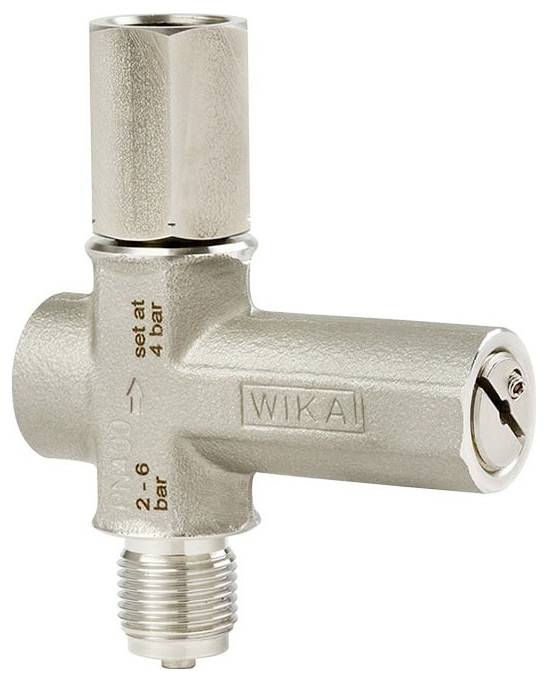

WIKA Surge protector 9091963 910.13 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Material seal: FPM
- Process/device connection: 1/2NPT stud + 1/2NPT sleeve
- Excess pressure safety 1000 bar
- Setting range: 0.4...2.5 bar
- Factory setting, set at: 1.45 bar
- Material body: Stainless steel
- Permissible temperature for the test substance: -10...+80°C.
- Product type
Surge protector
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
9091963
Documents & Downloads
Datasheet
Datasheet 3524840 WIKA Surge protector 9091963 910.13 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524840 WIKA Surge protector 9091963 910.13 1 pc(s)
Description
Overload protection device, adjustable
Technical data according to data sheet AC 09.04
Material body: Stainless steel
Material seal: FPM
Permissible temperature of the measuring substance: -10...+80°C
Process/device connection: 1/2NPT stud + 1/2NPT sleeve
Excess pressure safety 1000 bar
Setting range: 0.4...2.5 bar
Factory setting, set at: 1.45 bar
This text is machine translated.
Technical data according to data sheet AC 09.04
Material body: Stainless steel
Material seal: FPM
Permissible temperature of the measuring substance: -10...+80°C
Process/device connection: 1/2NPT stud + 1/2NPT sleeve
Excess pressure safety 1000 bar
Setting range: 0.4...2.5 bar
Factory setting, set at: 1.45 bar
This text is machine translated.
