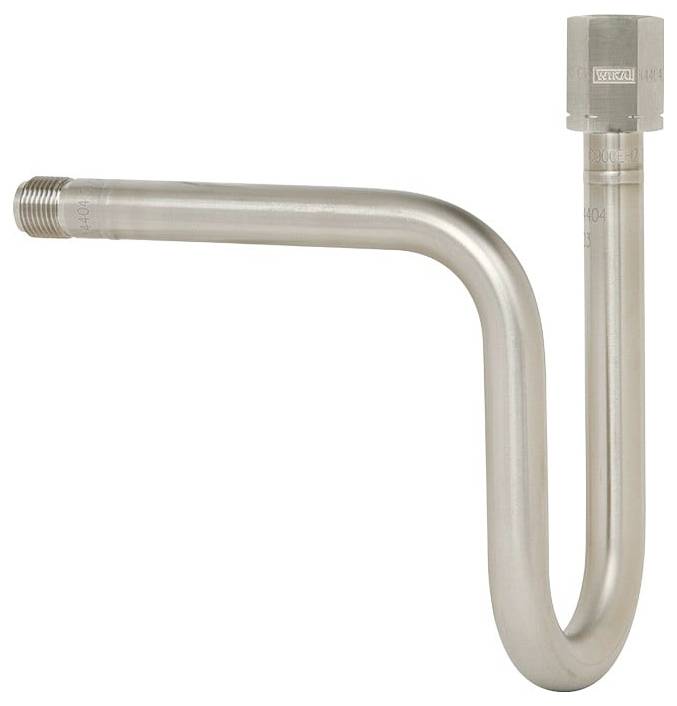

Image similar
WIKA U-bend pipe 0731277 910.15 160 bar (max) 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Process connection: 1/2 NPT external
- Design: U-shape left curved (DIN 16282 or similar)
- Pipe diameter 20 x 2.6 mm
- Device connection 1/2 NPT sleeve
- Permissible nominal pressure: PN max. 160 bar
- Accessories type 910.15-I
- Material body: Stainless steel
- Product type
U-bend pipe
- Manufacturer part #
0731277
- Dim
(Ø) 20 mm
- Connection
1/2 NPT external
- Max. operating pressure
160 bar
- Pressure range
160 bar (max)
- (Ø)
20 mm
- Pipe Ø
20 mm
Documents & Downloads
Datasheet
Datasheet 3524825 WIKA U-bend pipe 0731277 910.15 160 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524825 WIKA U-bend pipe 0731277 910.15 160 bar (max) 1 pc(s)
Description
Water bag pipe technical data according to data sheet: AC 09.06Design: U-shape (DIN 16282 or similar) Material Body: Steel 316Ti/1.4571 Process/device connection: 1/2NPT pins + 1/2NPT MuffAdditional order details: Non-permissible nominal pressure: PN max. 160 bar
