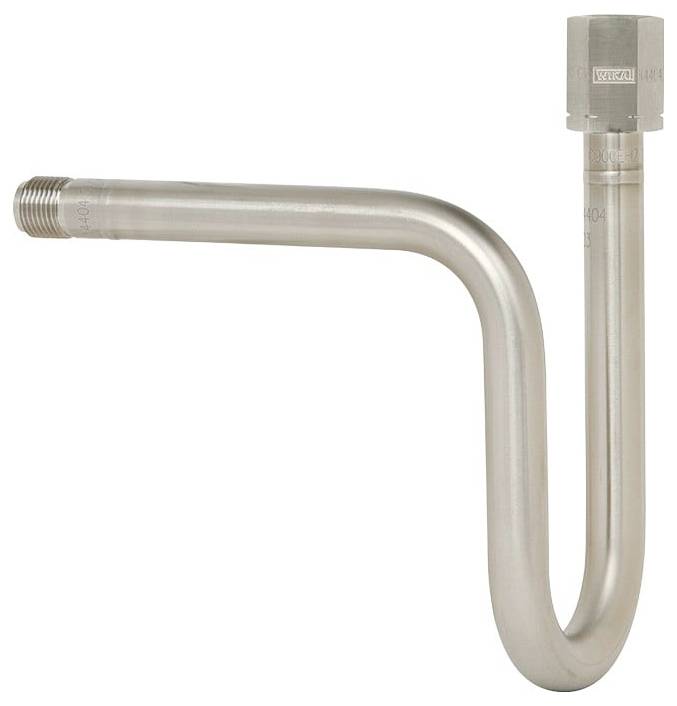

Image similar
WIKA U-bend pipe 9090673 910.15 160 bar (max) 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Process connection G1/2 B
- Special feature in the design: Phosphated
- Design: U-shape bending in one level
- Pipe diameter 20 x 2.6 mm
- Device connection G1/2 sleeve
- Permissible nominal pressure: PN max. 160 bar
- Accessories type 910.15-I
- Material body: Steel
- Product type
U-bend pipe
- Manufacturer part #
9090673
- Connection
G1/2 B
- Max. operating pressure
160 bar
- Pressure range
160 bar (max)
Documents & Downloads
Datasheet
Datasheet 3524804 WIKA U-bend pipe 9090673 910.15 160 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524804 WIKA U-bend pipe 9090673 910.15 160 bar (max) 1 pc(s)
Description
Water bag pipe technical data according to data sheet: AC 09.06Design: U-shape (DIN 16282 or similar) Material body: Steel 316Ti Process/device connection: G1/2 pins + G1/2 clamping sleeve Additional order details: Without permissible nominal pressure: PN max. 160 bar
