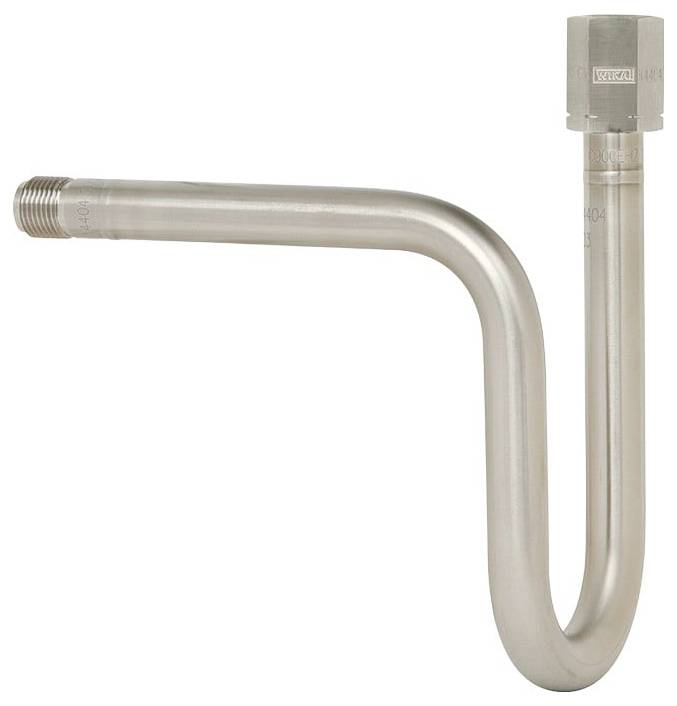

Image similar
WIKA U-bend pipe 9091190 910.15 160 bar (max) 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Process connection: Welding connection 2 x 45°
- Design: U-shape left curved (DIN 16282 or similar)
- Pipe diameter 20 x 2.6 mm
- Device connection G1/2 sleeve
- Permissible nominal pressure: PN max. 160 bar
- Accessories type 910.15-I
- Material body: Steel
- Product type
U-bend pipe
- Manufacturer part #
9091190
- Connection
Welding connection 2 x 45°
- Max. operating pressure
160 bar
- Pressure range
160 bar (max)
- Pipe Ø
20 mm
Documents & Downloads
Datasheet
Datasheet 3524716 WIKA U-bend pipe 9091190 910.15 160 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524716 WIKA U-bend pipe 9091190 910.15 160 bar (max) 1 pc(s)
Description
Water sack pipe
Technical data according to data sheet AC 09.06
Design: U-shape left curved (DIN 16282 or similar)
Material body: Steel
Pipe diameter 20 x 2.6 mm
Device connection G1/2 sleeve
Additional order details: Without
Permissible nominal pressure: PN max. 160 bar
Process connection: Welding connection 2 x 45°
Accessories type 910.15-I
This text is machine translated.
Technical data according to data sheet AC 09.06
Design: U-shape left curved (DIN 16282 or similar)
Material body: Steel
Pipe diameter 20 x 2.6 mm
Device connection G1/2 sleeve
Additional order details: Without
Permissible nominal pressure: PN max. 160 bar
Process connection: Welding connection 2 x 45°
Accessories type 910.15-I
This text is machine translated.
