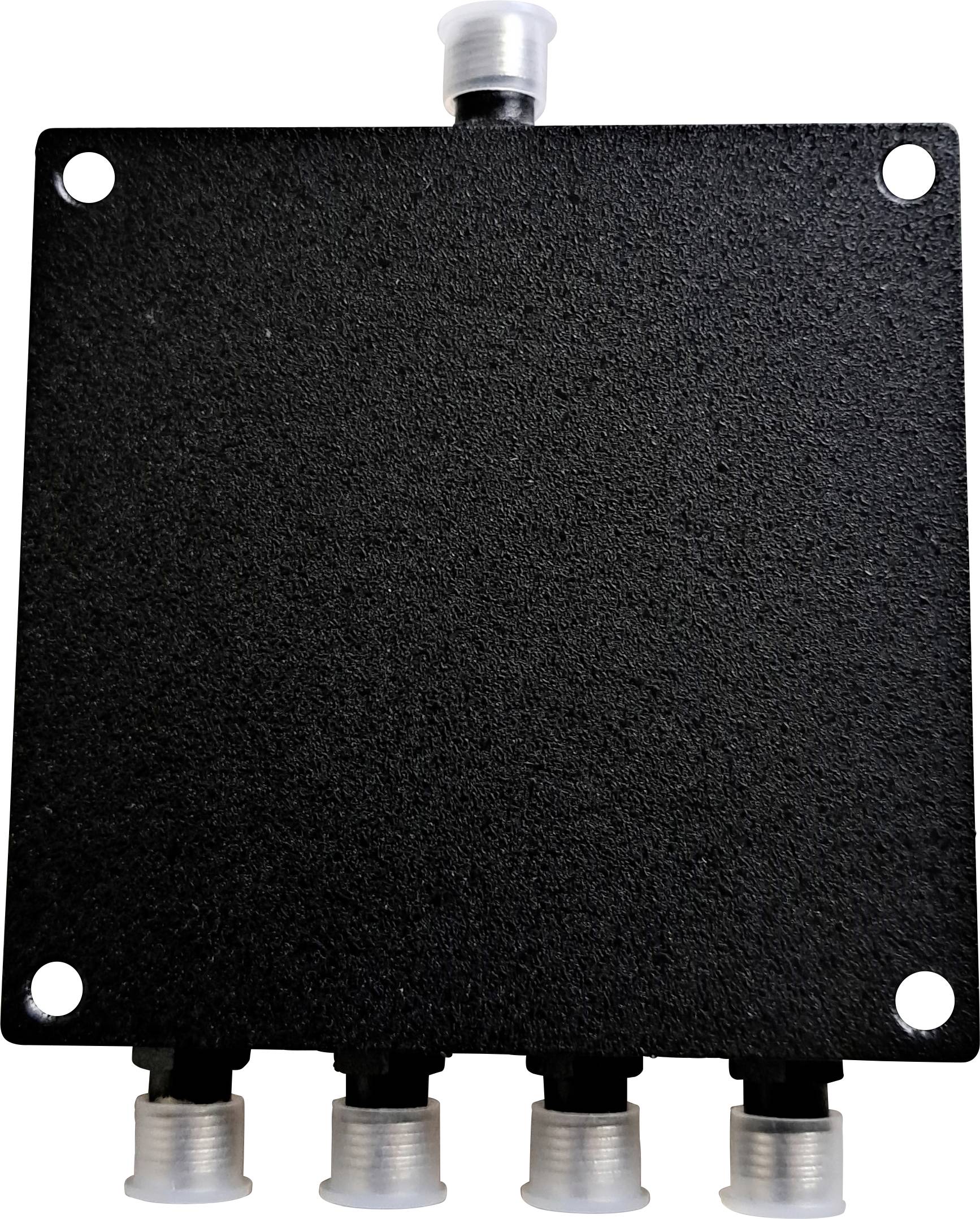

Wittenberg Antennen Signal splitter SMA socket Signalverteiler 4 fach SMA Buchsen , Frequenz 700-2700 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 2 Piece(s) available
Highlights & Details
LTE 4-way signal distributor, SMA sockets, frequency 700-2700 MHz
- Signal distributor LTE 4-way
- SMA sockets
- Frequency 700-2700 MHz
- This text is machine translated.
Technical specifications
- Frequency range 700 - 2700 MHz
- Insertion loss <=1 dB (does not include the theoretical loss of 6 dB)
- Amplitude balance 0.35 dB
- Phase balance 4°
- VSWR 1.3:1
- Impedance: 50 ohm
- Insulation >= 18 dB
- SMA socket(f) connections
- Power rating 20 watts
- Operating temperature -40°C up to +70°C
- Size tolerance 0.5 mm
- Product type
Signal splitter
- Connections
SMA socket
- Factory colour
Black
- Connector version
straight
threaded
- Length
61 mm
60 mm
14 mm
Documents & Downloads
Datasheet
Datasheet 3376404 Wittenberg Antennen Signal splitter SMA socket Signalverteiler 4 fach SMA Buchsen , Frequenz 700-2700 MHz
User & Safety Instructions
User & Safety Instructions 3376404 Wittenberg Antennen Signal splitter SMA socket Signalverteiler 4 fach SMA Buchsen , Frequenz 700-2700 MHz
Description
System requirements
- Antenna with SMA plug as a connection
