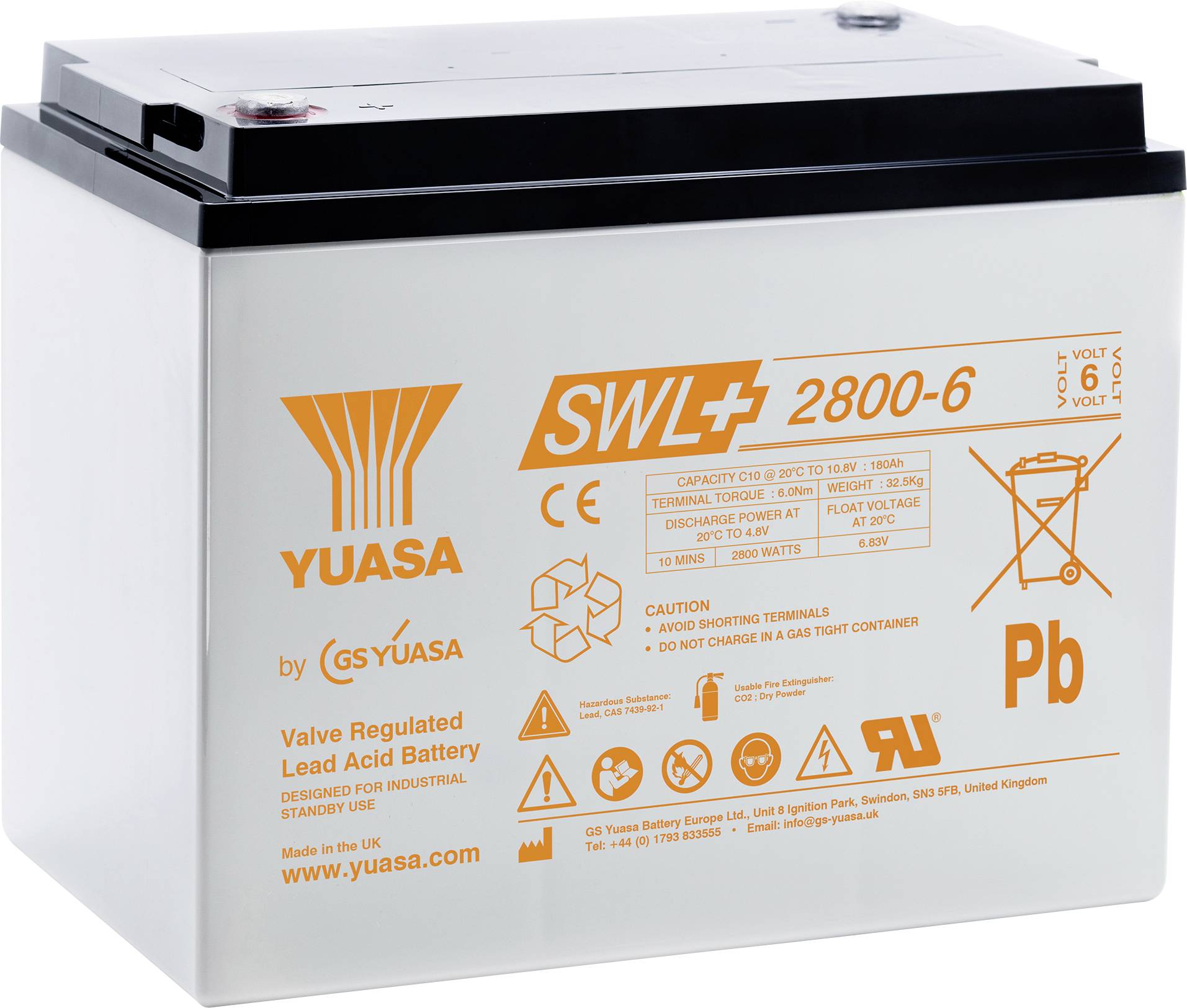

Name: Yuasa SWL+2800-6 VRLA AGM 180 Ah 6 V 1 pc(s)
Brand: Yuasa
SKU: 3729229

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Yuasa SWL+2800-6 VRLA AGM 180 Ah 6 V 1 pc(s)

Extended life span and EUROBAT classification: 15 years life at 20°C.
Improved performance at high discharge rates
Hybrid pure lead technology
HT Element X Alloy Technology
Sustainable design and production
Certified safety, performance and durability
Practical emergency power supply
Fully compatible with existing SWL solutions
Excellent recovery after deep discharge
Versatile orientation

Technical specifications

Length: 297 mm (±3 mm), width: 168 mm (±2 mm)
Life period: EUROBAT 'Very Long Life' class (12+ years)
Yuasa design durability: Up to 15 years at 20°C.
Maximum discharge current: 1500 A (for 1 second), 800 A (for 1 minute)
Housing material ABS (UL94:HB standard)
Constant power discharge rate: 2800 watts per Block (10 min. Up to 9.6 V/cell at 20°C)

Product type: VRLA

Technology: AGM

Voltage: 6 V

Capacity (mAh, Ah): 180 Ah

Height: 231.5 mm

Weight: 32.5 kg

Content: 1 pc(s)

Type: SWL+2800-6

Rechargeable: Yes

Connector: M8 connector

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3729229 Yuasa SWL+2800-6 VRLA AGM 180 Ah 6 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3729229 Yuasa SWL+2800-6 VRLA AGM 180 Ah 6 V 1 pc(s)

Description

The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
