Name: Yuasa SWL+3000 VRLA AGM 93.6 Ah 12 V 1 pc(s)
Brand: Yuasa
SKU: 3729232

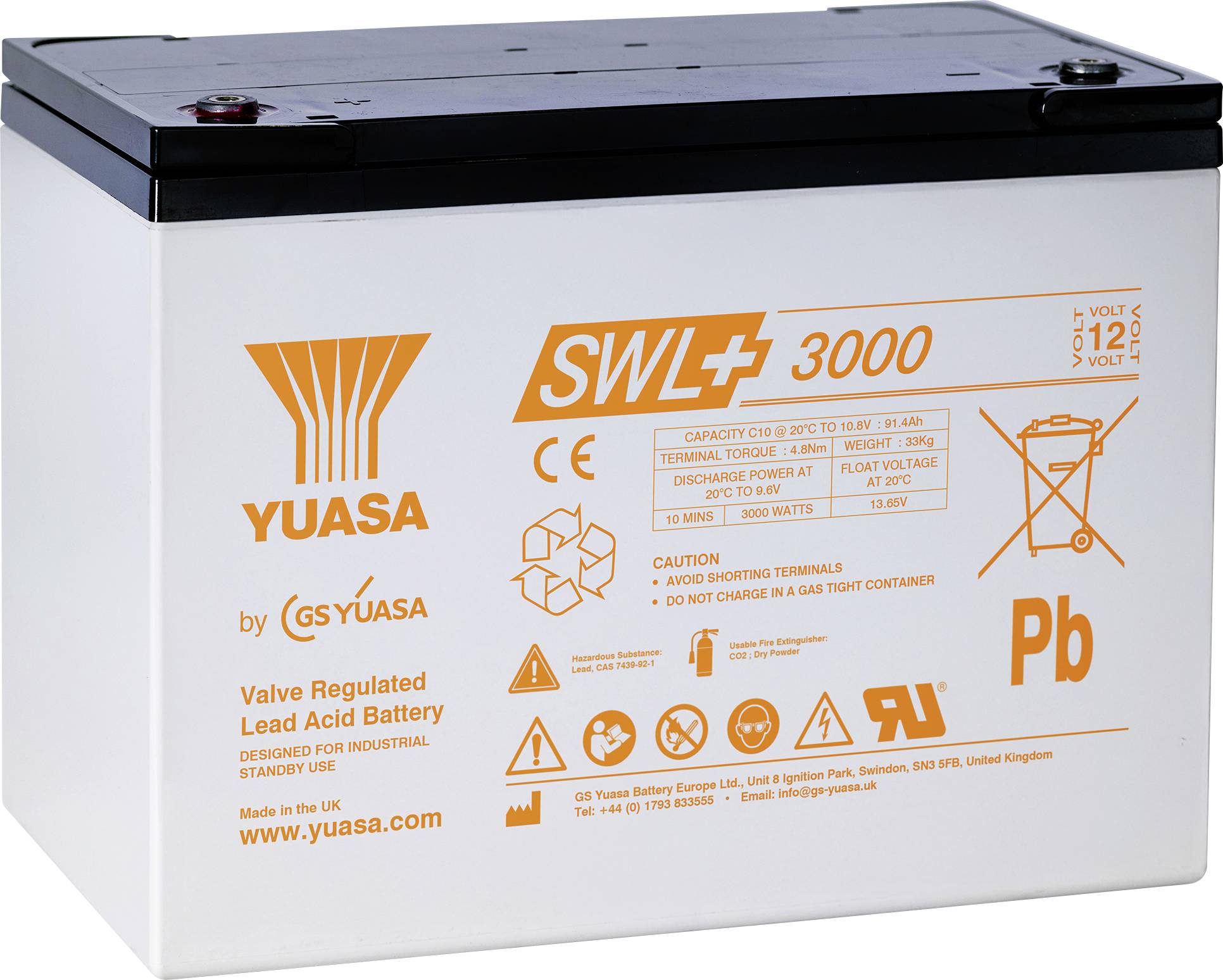

'Yuasa SWL 3000' lead acid battery with warning symbols, voltage information, and recycling instructions on the label.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Yuasa SWL+3000 VRLA AGM 93.6 Ah 12 V 1 pc(s)

Extended life span and EUROBAT classification: 15 years life at 20°C.
Improved performance at high discharge rates
Hybrid pure lead technology
HT Element X Alloy Technology
Sustainable design and production
Certified safety, performance and durability
Practical emergency power supply
Fully compatible with existing SWL solutions
Excellent recovery after deep discharge
Versatile orientation

Technical specifications

Length: 305 mm (±3 mm), width: 168 mm (±2 mm)
Life period: EUROBAT 'Very Long Life' class (12+ years)
Yuasa design durability: Up to 15 years at 20°C.
Maximum discharge current: 1000 A (for 1 second), 500 A (for 1 minute)
Tightening torque 4.8 Nm
Housing material ABS (UL94:HB standard)
Constant power discharge rate: 3000 watts per Block (10 min. Up to 9.6 V/cell)

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 93.6 Ah

Height: 224.5 mm

Weight: 33 kg

Content: 1 pc(s)

Type: SWL+3000

Rechargeable: Yes

Connector: M6 connector

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3729232 Yuasa SWL+3000 VRLA AGM 93.6 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3729232 Yuasa SWL+3000 VRLA AGM 93.6 Ah 12 V 1 pc(s)

Description

The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
