Name: Yuasa SWL+800 VRLA AGM 25 Ah 12 V 1 pc(s)
Brand: Yuasa
SKU: 3729215

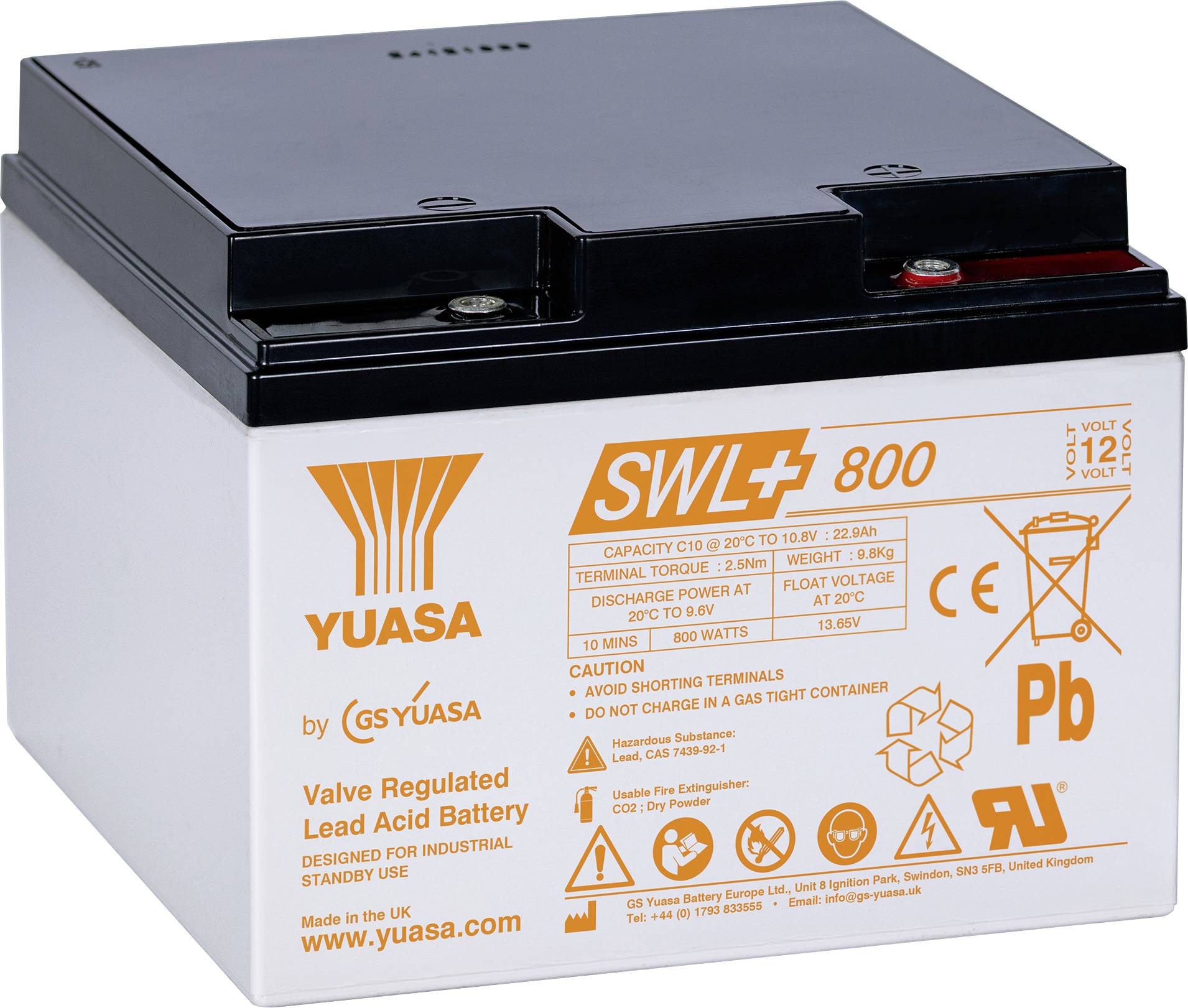

A white lead acid battery with a black top labeled 'Yuasa SWL 800'. Displays specifications, safety symbols, and uses industrial design.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Yuasa SWL+800 VRLA AGM 25 Ah 12 V 1 pc(s)

Extended life span and EUROBAT classification: 15 years life at 20°C.
Improved performance at high discharge rates
Hybrid pure lead technology
HT Element X Alloy Technology
Sustainable design and production
Certified safety, performance and durability
Practical emergency power supply
Fully compatible with existing SWL solutions
Excellent recovery after deep discharge
Versatile orientation
Flame-retardant options

Technical specifications

Maximum discharge current: 500 A for 1 second
Constant power 800 W per Block

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 25 Ah

Height: 125 mm

Weight: 9.8 kg

Content: 1 pc(s)

Type: SWL+800

Rechargeable: Yes

Connector: M5 connector

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3729215 Yuasa SWL+800 VRLA AGM 25 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3729215 Yuasa SWL+800 VRLA AGM 25 Ah 12 V 1 pc(s)

Description

The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
