Name: Yuasa SWL+800FR VRLA AGM 24.4 Ah 12 V 1 pc(s)
Brand: Yuasa
SKU: 3729214

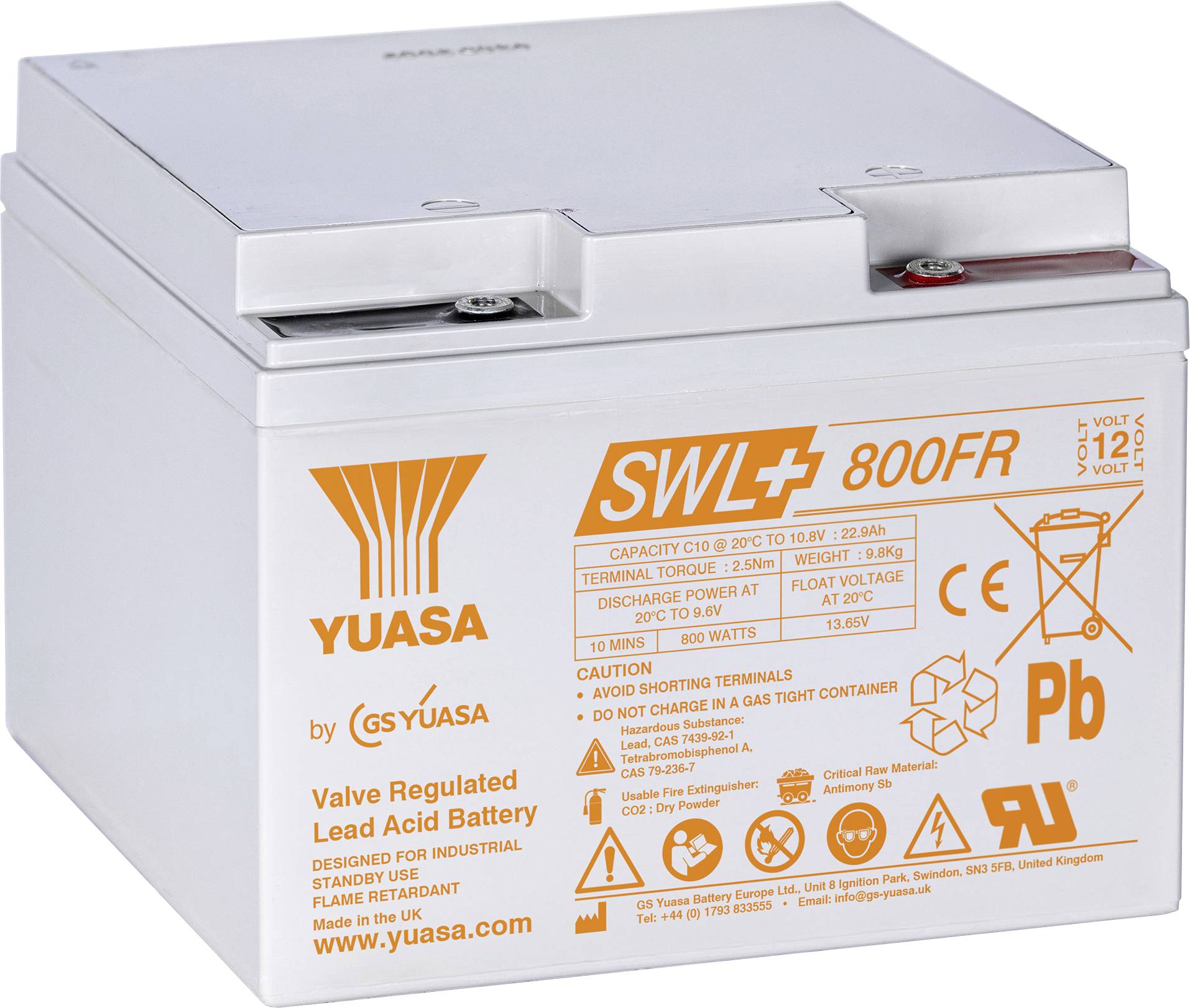

A white battery labeled 'SWL 800FR' by Yuasa, showing specifications and safety icons, including a lead acid caution and recycling symbol.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Yuasa SWL+800-12FR industrial high-current VRLA battery

Extended life span and EUROBAT classification: 15 years life at 20°C.
Improved performance at high discharge rates
Hybrid pure lead technology
HT Element X Alloy Technology
Sustainable design and production
Certified safety, performance and durability
Practical emergency power supply
Fully compatible with existing SWL solutions
Excellent recovery after deep discharge
Versatile orientation
Flame-retardant options

Technical specifications

Width/depth 166 mm x 125 mm
Battery, comparable types SWL800, NP17-12, NPG17-12, Genis12EP26
Housing material: Flame-resistant according to UL94-V0 (FR)
Technology: VRLA

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 24.4 Ah

Height: 166 mm

Weight: 9.3 kg

Content: 1 pc(s)

Type: SWL+800FR

Rechargeable: Yes

Connector: M5 connector

Voltage: 1.2 V

UKCA: yes

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3729214 Yuasa SWL+800FR VRLA AGM 24.4 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3729214 Yuasa SWL+800FR VRLA AGM 24.4 Ah 12 V 1 pc(s)

Description

The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
