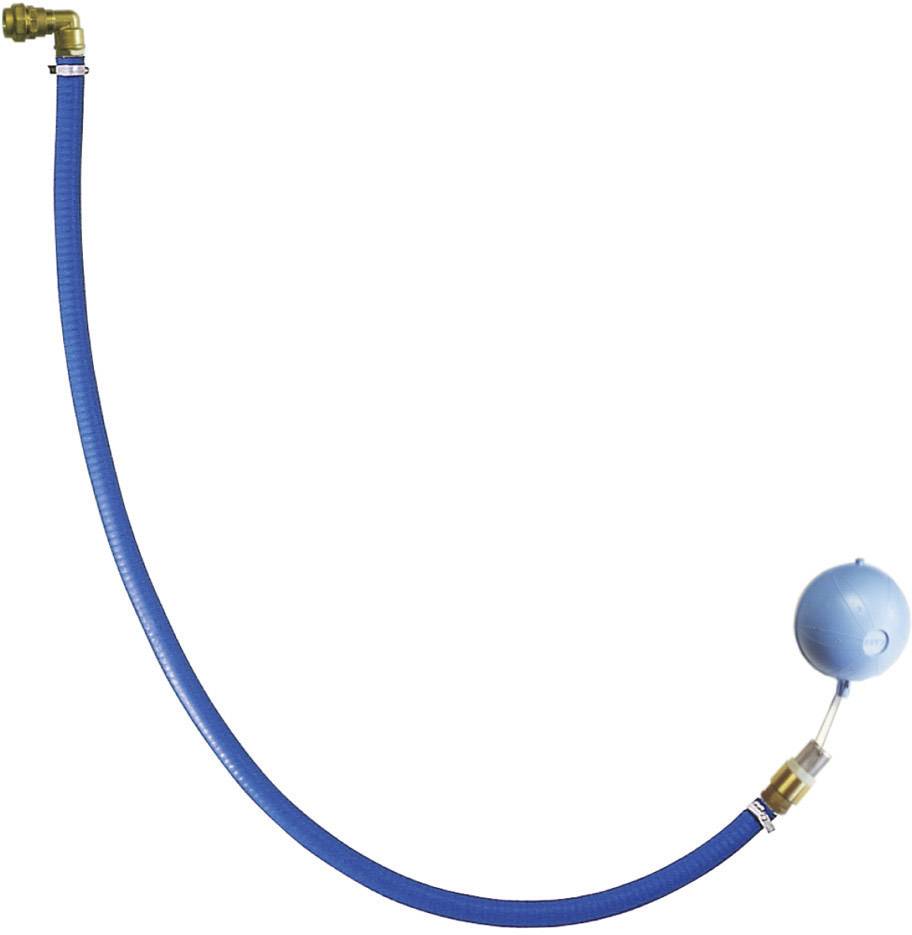

Zehnder Pumpen 19113 Floating water extraction unit 2 m PE
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Floating Removal Flux 2 m
- For rainwater harvesting systems in one and two-family house
- For use in containers, which filtered rain water flow
- The intake of the cleanest water approx. 15 cm under the water surface
Technical specifications
- Product type
Floating water extraction unit
- Material
PE
- Factory colour
Blue
- Connection
PE elbow 1"
- Length
2 m
- Weight
3.0 kg
Documents & Downloads
Datasheet
Datasheet 1600067 Zehnder Pumpen 19113 Floating water extraction unit 2 m PE
User & Safety Instructions
User & Safety Instructions 1600067 Zehnder Pumpen 19113 Floating water extraction unit 2 m PE
Description
When the floating removal of flux is indicated by the float ball always the cleanest water approx. 15 cm below the surface of the water is sucked in. The Seiher at very low water level falls due to the length of hose but never fully to the cistern floors. Thus, the
Pump suction of the floating layer as well as the sediments both before protected.
This text is machine translated.
Pump suction of the floating layer as well as the sediments both before protected.
This text is machine translated.
Features
- Elbow Fitting made of brass
- Spiral suction hose from keimhemmendem thermoplastic
- Non-return valve made of brass
- Seiher and hose clamps made of corrosion-resistant stainless steel
- Floating body made of PE.
Scope of delivery
- PE elbow 1" made of brass, Make Beulco
- Special keimhemmender rubber spiral hose 1"
- 2 m length
- Non-return valve
- Seiher, mesh size 1 mm.
