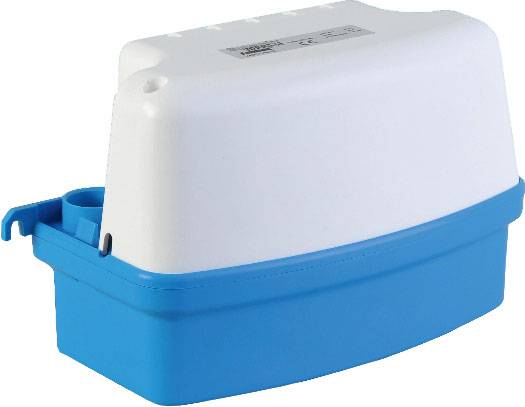

Zehnder Pumpen ZKH 20 Condensate pump 4.5 m
EAN:
Part number:
Item no:
Highlights & Details
Condensate pump ZKH 20
- Very quiet in operation
- Optimum motor cooling
- Fully automatic
Technical specifications
- Product type
Condensate pump
- Max. delivery head
4.5 m
- Max. feed rate
340 l/h
- Operating voltage
230 V
- Power consumption (P1)
60 W
- Hose connector
28 mm
- Float switch
Yes (built-in)
- Overload protection
Yes
- Cable length
2 m
IP20
- Length
28.7 cm
- Width
12.7 cm
- Height
16 cm
- Dim
(L x W x H) 28.7 x 12.7 x 16 cm
- Weight
2 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2236930 Zehnder Pumpen ZKH 20 Condensate pump 4.5 m
Description
For fully automatic draining of condensate from air conditioners and condensing boilers with a pH value of up to 2.5, where no discharge due to gravity is possible. Automatic operation with stop and safety switch. The on-off control takes place automatically via a robust float switch. In the event of a pump failure (impermissibly high water level in the tank), an alarm switch can switch off the air conditioner or the condensing boiler
This text is machine translated.
This text is machine translated.
Features
- Connection for pressure hose with 9 mm inner diameter
- Tank capacity: 1.2 l
- Operating temperature max. 80°C S3 15% (1min 30 in function / 8min 30 stop)
- Integrated check valve to prevent condensate return
- If necessary, use adaptor DN 19, 32, 40
- System is equipped with wall mounting device
Scope of delivery
- 6 m hose with 9 mm inner diameter
- 2 m connection cable with Schuko plug
- 2 m cable for alarm switching
- Inlet stub
- Transition ADAPTER HOSE /HT DN 50
- Mounting screws
