Name: Zendure SolarFlow Set Balcony power plant energy storage and charge controller MPPT
Brand: Zendure
SKU: 2884199

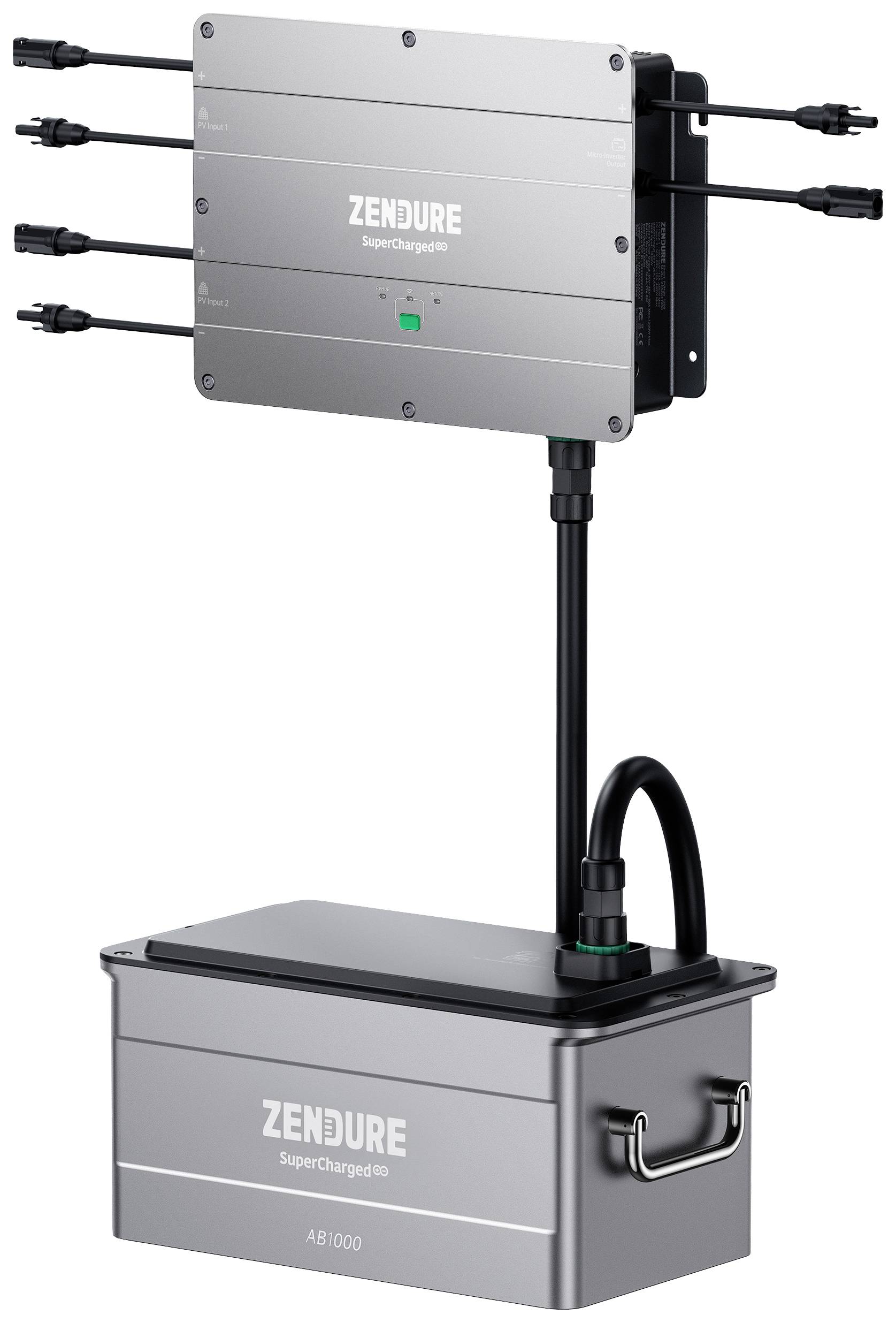

SuperBase V by Zendure, a portable battery system with integrated electronics unit. Suitable for flexible power supply.

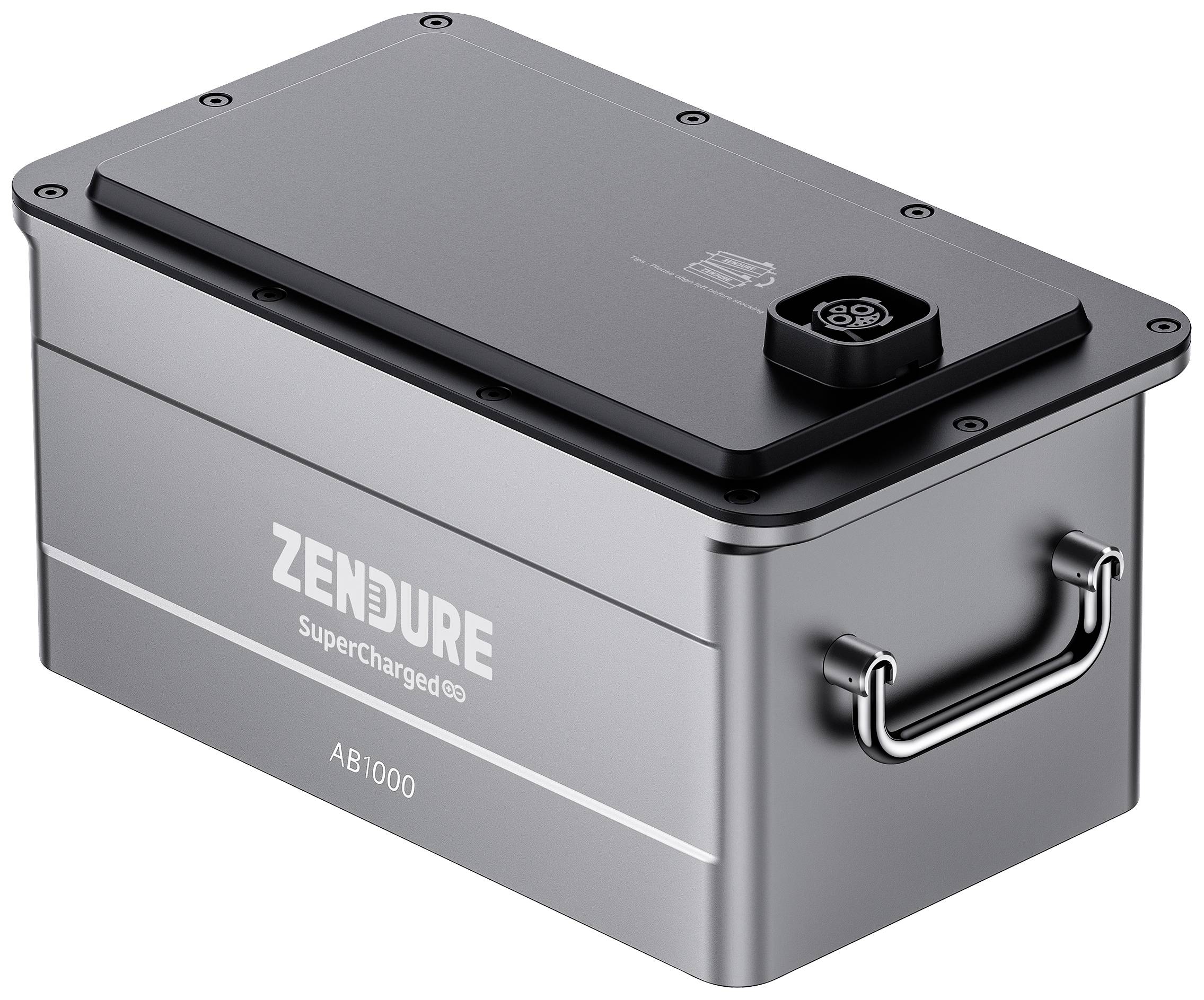

A silver portable battery with the inscription 'Zendure SuperCharged AB1000' and a handle on the side, featuring a charging port.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Battery life-threatening solar flow set w/1 rechargeable batteries 960Wh

Storage system for balcony power plants / mini PV-systems
MC4 universal adaptability
Safe and comfortable to use on the balcony
Easy to install and move
Power supply of household appliances
Intelligent power monitoring and management

Technical specifications

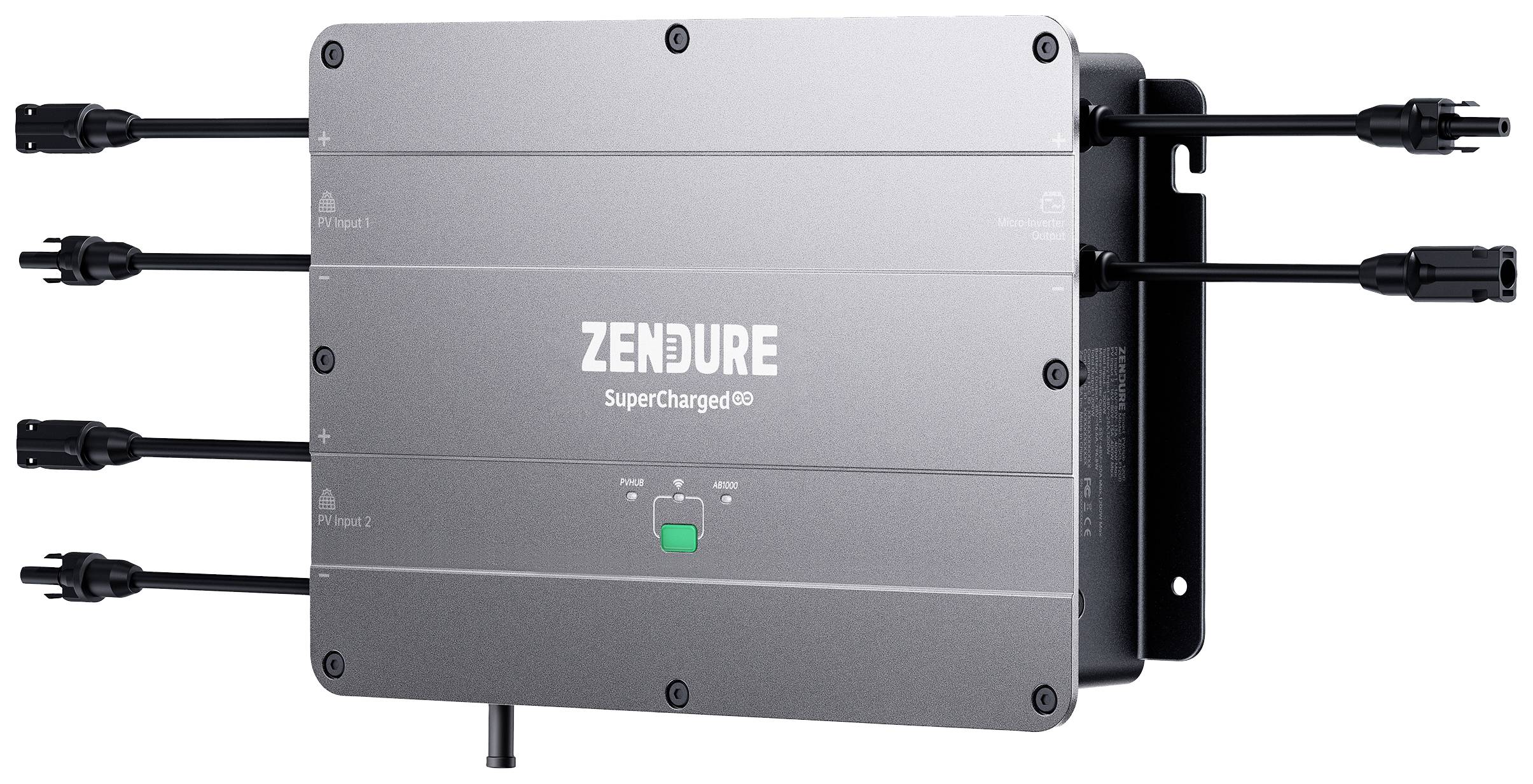

PV Hub: Dimensions 363 x 246 x 64 mm, weight 4.7 kg, double PV input 2 x 400W, 800W MPPT, input voltage 16V-80V, max. Input current 2x13A, Output adjustable 100W- 1200W (adjustable in 100W steps), Output current max. 30A, Output voltage 35-48V, Protection class IP65
AB1000 LiFePo 4 battery: Dimensions 350 x 200 x 186.5 mm, weight 11.5 kg, capacity 960Wh (20Ah / 48V), system LiFePo4, cycles approx. 2000, input power max. 800W, output power max.

Product type: Balcony power plant energy storage and charge controller

Module power (max.): 800 W

Matching rechargeable battery: LiFePO4

Control type: MPPT

Weight: 11.5 kg

Features: Dual inpot

Module load (max.): 13 A

Documents & Downloads

Datasheet

Datasheet 2884199 Zendure SolarFlow Set Balcony power plant energy storage and charge controller MPPT

User & Safety Instructions

User & Safety Instructions 2884199 Zendure SolarFlow Set Balcony power plant energy storage and charge controller MPPT

Information

Test Summary Report 2884199 Zendure SolarFlow Set Balcony power plant energy storage and charge controller MPPT

Security datasheet

Security datasheet 2884199 Zendure SolarFlow Set Balcony power plant energy storage and charge controller MPPT

Description

Use 100% of the self-generated power with SolarFlow by saving unused power in the battery instead of feeding it to the mains without being remunerated. Through MC4 connectors compatible with 90% of the conventional balcony power plants. The solar panels are connected to the PV hub of the solar flow, the PV hub is connected to the AB1000 battery and the micro-inverter. You can use the APP to set how much watt solar flow is fed to the inverter. Exceeds from the panels
The power generated is this value, the excess current is stored in the battery.

This text is machine translated.
