Zettler Electronics AZ2150W-1AE-12DEFT PCB relay 12 V DC 30 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
3469 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€
Technical specifications
- Type
AZ2150W-1AE-12DEFT
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Max. pick-up voltage
14.4 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
130 Ω
- Contact type
1 maker
- Contact material
AgSnO
- Switching voltage (max.)
240 V DC
440 V AC
- Switching current (max.)
30 A
- Max. switching capacity
900 W
8310 VA
- Connection
Solder pins
- Insulation voltage
1500 V
- Min. temperature
-40 °C
- Max. temperature
+85 °C

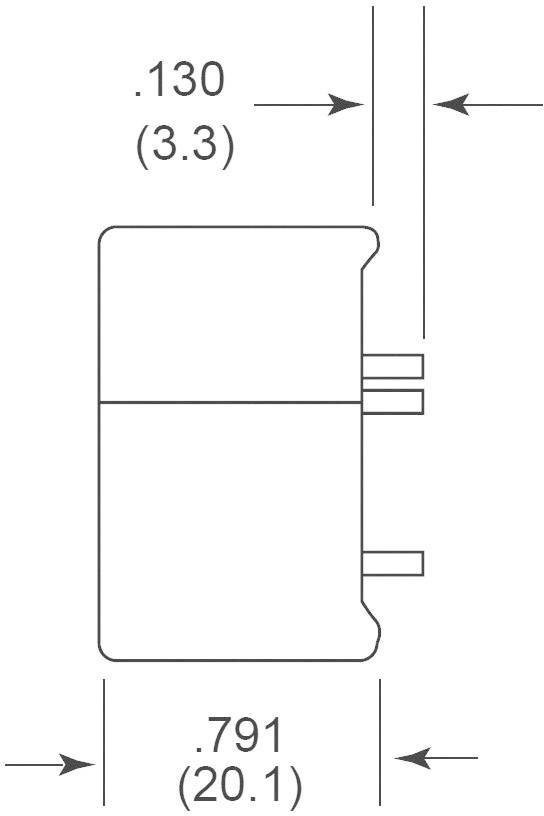

- Length
32.2 mm
- Width
27 mm
- Height
20.1 mm
- Dim
(L x W x H) 32.2 x 27 x 20.1 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Product type
PCB relay
