Highlights & Details

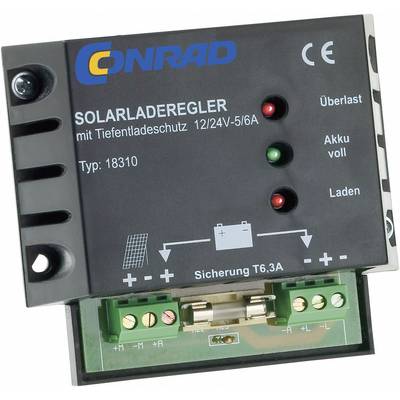

18310 Charge controller PWM 12 V, 24 V 6 A
- With deep discharge protection and gassing regulation
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
70 Wp
- Temperature range
-25 - +50 °C
- Charging current (max.)
6 A
- Own power consumption
consumption 2 - 5 mA
- Matching rechargeable battery
Lead
- Control type
PWM
- Dim
(L x W x H) 98 x 88 x 35 mm
- Weight
120 g
- Features
Shunt
Power cut-off
- Current load
6 A
- Module load (max.)
6 A
- Width
88 mm
- Height
35 mm
- Length
98 mm
- Cable cross section
1.5 mm²
- Max. load current
6 A
- Nominal voltage (details)
12/24 V
- Control type
Shunt
- Power consumption
2 - 5 mA
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 111182 18310 Charge controller PWM 12 V, 24 V 6 A
Description
PWM shunt controllers are ideal for small- and medium-sized photovoltaic systems. The integrated overcharge and deep discharge protection provide your solar battery with maximum protection.
Features
- Automatic 12/24 V switching
- Temperature compensation
- LED-control display
- Basis of regulation: voltage-controlled
- Type of regulation: Shunt
- Temperature tracking.
Scope of delivery
- Solar controller
- Instructions for use.
